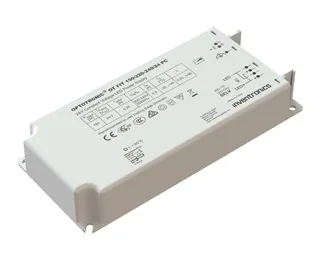

Inventronics OT PC 24V constant-voltage LED driver series

Name: Inventronics OT PC 24V constant-voltage LED driver series
Brand: Inventronics
SKU: INV-OT-PC-24V

SKUINV-OT-PC-24V

Inventronics Constant-voltage LED drivers · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Output power36–150 W

Dimming range3 ~ 100 % luminous flux

IP rating (as published)IP20

Lifetimeup to 50,000 h(temperature at max.tc)

Price on requestQuoted for your configuration and quantity.

Technical clarificationCompiled from the supplied Inventronics Lighting Systems product overview catalogue (page 203). Merged table cells are left blank as printed. Ratings and certifications are supplier claims; confirm the exact model datasheet before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Constant-voltage LED drivers

Optotronic Constant Volgate drivers with phase-cut dimming control port. Inndependent housing for installation freedom on any surfaces.

Key data: output power 36–150 W; dimming range 3 ~ 100 % luminous flux; ip rating IP20; lifetime up to 50,000 h(temperature at max.tc).

This record covers 3 catalogue models; the full model table is listed below and in the specification sheet. Tell us the exact model in your RFQ.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Output power36–150 W

Dimming range3 ~ 100 % luminous flux

IP rating (as published)IP20

Lifetimeup to 50,000 h(temperature at max.tc)

Specifications

The technical details.

Download specification sheet

Product type: Constant-voltage LED driver
Applications (catalogue): Retail, hospitality & commercial, Architectural, signage & non-lighting
Output power: 36–150 W
Lifetime: up to 50,000 h(temperature at max.tc)
Dimming range: 3 ~ 100 % luminous flux

IP rating (as published): IP20
Key features: IP rating: IP20 ; High efficiency ; Very stable output power ; High electronical reversible short-circuit, overload, overtemperature protection ; Independent installation possible ; Suitable for luminaires of protection classes I and II
Models: OT FIT 36/220-240/24 PC, OT FIT 75/220-240/24 PC, OT FIT 150/220-240/24 PC
Model count: 3

Models & variants

Choose the exact model.

Values as published by Inventronics. Name the exact model or variant in your RFQ.

EAN	Product name	Output power (W)	Output current (mA)	Output voltage (V)	Efficiency	Dimensions (mm)
6977770438460	OT FIT 36/220-240/24 PC	2.42 ~ 36	not relevant	24.2	85%	103 x 67 x 29.5
6977770438484	OT FIT 75/220-240/24 PC	24.2 ~ 75	not relevant	24.2	92%	110 x 75 x 30
6977770438569	OT FIT 150/220-240/24 PC	60.5 ~ 150	not relevant	24.2	92%	170 x 76 x 30
