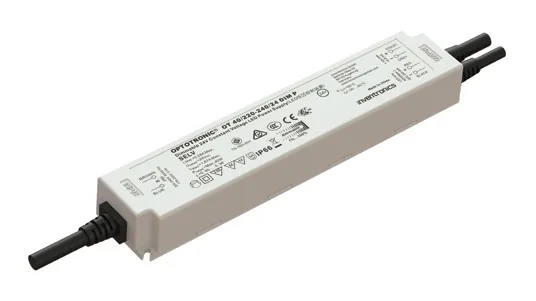

Inventronics Inventronics OT 24V P constant-voltage LED driver series INV-OT-24V-P

Constant-voltage LED driversHover to zoom

Inventronics · Constant-voltage LED drivers

Inventronics OT 24V P constant-voltage LED driver series

Name: Inventronics OT 24V P constant-voltage LED driver series
Brand: Inventronics
SKU: INV-OT-24V-P

SKUINV-OT-24V-P

Inventronics Constant-voltage LED drivers · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Output power20–250 W

IP rating (as published)IP66 / IP67

Wide operating temperature range-30 ~ +55 °C

Lifetimeup to 50,000 h (temperature at max. tc )

Price on requestQuoted for your configuration and quantity.

Technical clarificationCompiled from the supplied Inventronics Lighting Systems product overview catalogue (page 277). Merged table cells are left blank as printed. Ratings and certifications are supplier claims; confirm the exact model datasheet before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Constant-voltage LED drivers

DC mode functionality; Type of protection: IP66 and IP67; Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE).

Key data: output power 20–250 W; ip rating IP66 / IP67; wide operating temperature range -30 ~ +55 °C; lifetime up to 50,000 h (temperature at max. tc ).

This record covers 6 catalogue models; the full model table is listed below and in the specification sheet. Tell us the exact model in your RFQ.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Output power20–250 W

IP rating (as published)IP66 / IP67

Wide operating temperature range-30 ~ +55 °C

Lifetimeup to 50,000 h (temperature at max. tc )

Specifications

The technical details.

Download specification sheet

Product type: Constant-voltage LED driver
Applications (catalogue): Architectural, signage & non-lighting
Output power: 20–250 W
Wide operating temperature range: -30 ~ +55 °C
Lifetime: up to 50,000 h (temperature at max. tc )

IP rating (as published): IP66 / IP67
Key features: DC mode functionality ; Type of protection: IP66 and IP67 ; Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE) ; Wide operating temperature range: -30 ~ +55 °C ; Lifetime: up to 50,000 h (temperature at max. tc ) ; Large range of products from 20 W to 250 W
Models: OT 20/220-240/24 P, OT 40/220-240/24 P, OT 60/220-240/24 P, OT 100/220-240/24 P, OT 130/220-240/24 P, OT 250/220-240/24 P
Model count: 6
Additional models (2026 H1 selection guide): OT 100/220-240/24 DIM P, OT 130/220-240/24 DIM P, OT 20/220-240/24 DIM P, OT 250/220-240/24 DIM P, OT 40/220-240/24 DIM P, OT 60/220-240/24 DIM P

Models & variants

Choose the exact model.

Values as published by Inventronics. Name the exact model or variant in your RFQ.

EAN	Product name	Output power (W)	Output current (mA)	Output voltage (V)	Efficiency	Dimensions (mm)
6937186114914	OT 20/220-240/24 P	20	not relevant	24.2	83%	178 x 43 x 25
6937186114938	OT 40/220-240/24 P	40	not relevant	24.2	85%	208 x 43 x 26
6937186114952	OT 60/220-240/24 P	60	not relevant	24.2	87%	208 x 43 x 26
6937186114976	OT 100/220-240/24 P	100	not relevant	24.2	90%	240 x 50 x 34
6937186114990	OT 130/220-240/24 P	130	not relevant	24.2	90.5%	220 x 63 x 37
6937186115010	OT 250/220-240/24 P	250	not relevant	24.2	92%	265 x 68 x 40
