InventronicsInventronics NEL LED driver series INV-NEL
Outdoor & high-power LED driversHover to zoom

Inventronics · Outdoor & high-power LED drivers

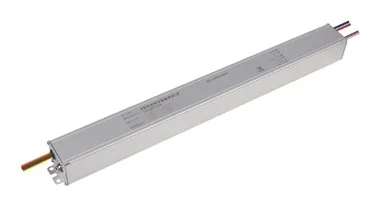

Inventronics NEL LED driver series

SKUINV-NEL

Inventronics Outdoor & high-power LED drivers · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Output power400 W
Efficiency (max., as published)Up to 97%
Input Voltage Range180 ~ 457 Vac
Always-on Auxiliary Power12Vdc, 250mA
Price on requestQuoted for your configuration and quantity.
Technical clarificationCompiled from the supplied Inventronics Lighting Systems product overview catalogue (page 88). Merged table cells are left blank as printed. Ratings and certifications are supplier claims; confirm the exact model datasheet before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Outdoor & high-power LED drivers

The NEL family is a non-isolated, slim product designed for the horticulture industry and other applications requiring a linear form factor with a wide input voltage range of 180-457Vac. They provide high efficiency to reduce electricity consumption. ) 尺寸 (L×W×H)(mm) Output Output Dimensions Current Voltage Range Eff.@ 400Vac Lifetime (hours) (L×W×H)(mm) (mA) (Vdc) 730 ~ 1400 150 ~ 550 97.0% 102,000 Tc= 70°C 452 × 40.5 × 40 MF: 452(431) × 43 × 38 730 ~ 1400 150 ~ 550 97.0% 120,00.

Key data: output power 400 W; efficiency Up to 97%; input voltage range 180 ~ 457 Vac; always-on auxiliary power 12Vdc, 250mA.

This record covers 2 catalogue models; the full model table is listed below and in the specification sheet. Tell us the exact model in your RFQ.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Output power400 W

Efficiency (max., as published)Up to 97%

Input Voltage Range180 ~ 457 Vac

Always-on Auxiliary Power12Vdc, 250mA

IP rating (as published)IP20 / IP65 / IP66 / IP67

Warranty (as published)5 years

Specifications

The technical details.

Download specification sheet
Product type
LED driver (outdoor / high power)
Applications (catalogue)
Sports & horticulture
Output power
400 W
Efficiency (max., as published)
Up to 97%
Input Voltage Range
180 ~ 457 Vac
Always-on Auxiliary Power
12Vdc, 250mA
IP rating (as published)
IP20 / IP65 / IP66 / IP67
Warranty (as published)
5 years
Key features
Ultra High Efficiency (Up to 97%) ; Non-Isolated Design with Low Residual Output Voltage ; No Afterglow ; Adjustable Output Current (AOC) with Programmability ; Input Voltage Range: 180 ~ 457 Vac ; Always-on Auxiliary Power: 12Vdc, 250mA
Models
NEL-400S140MP, NEL-400S140Mx 1
Model count
2

Models & variants

Choose the exact model.

Values as published by Inventronics. Name the exact model or variant in your RFQ.

ModelOutput current (mA)Output voltage (V)EfficiencyLifetime (h)Dimensions (mm)
NEL-400S140MP730 ~ 1400150 ~ 55097.0%102,000 Tc= 70°C452 × 40.5 × 40
NEL-400S140Mx 1730 ~ 1400150 ~ 55097.0%120,000 Tc=70°CMG/MT: 462(441) × 43 × 38

Documents

Specification sheet & source.

Project Supplies specification sheet

INV-NEL

Product image, key data, the full specification, the model table and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-05Inventronics
Open specification sheet

Technical source

Inventronics

Checked 2026-10-05. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
