InventronicsInventronics EBS-BT2/DT2 LED driver series INV-EBS-BT2-DT2
Outdoor & high-power LED driversHover to zoom

Inventronics · Outdoor & high-power LED drivers

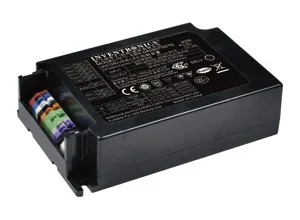

Inventronics EBS-BT2/DT2 LED driver series

SKUINV-EBS-BT2-DT2

Inventronics Outdoor & high-power LED drivers · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Output power25–165 W
Efficiency (max., as published)Up to 94.0%
Input Voltage Range176 ~ 305Vac
Always-on Auxiliary Power24Vdc,125mA, 3W (Transient Peak Power up to 10W)
Price on requestQuoted for your configuration and quantity.
Technical clarificationCompiled from the supplied Inventronics Lighting Systems product overview catalogue (page 25). Merged table cells are left blank as printed. Ratings and certifications are supplier claims; confirm the exact model datasheet before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Outdoor & high-power LED drivers

High Efficiency (Up to 94.0%); Full Power at Wide Output Current Range (Constant Power); Adjustable Output Current (AOC) with NFC.

Key data: output power 25–165 W; efficiency Up to 94.0%; input voltage range 176 ~ 305Vac; always-on auxiliary power 24Vdc,125mA, 3W (Transient Peak Power up to 10W).

This record covers 29 catalogue models; the full model table is listed below and in the specification sheet. Tell us the exact model in your RFQ.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Output power25–165 W

Efficiency (max., as published)Up to 94.0%

Input Voltage Range176 ~ 305Vac

Always-on Auxiliary Power24Vdc,125mA, 3W (Transient Peak Power up to 10W)

Specifications

The technical details.

Download specification sheet
Product type
LED driver (outdoor / high power)
Applications (catalogue)
Street & area
Output power
25–165 W
Efficiency (max., as published)
Up to 94.0%
Input Voltage Range
176 ~ 305Vac
Always-on Auxiliary Power
24Vdc,125mA, 3W (Transient Peak Power up to 10W)
Dimming / control
Isolated 1-10V / 3-Timer-Modes Dimmable (DT2 Models) ; DALI-2 / AC Dim / 3-Timer-Modes (BT2 Models) ; Dim-to-Off with Standby Power ≤ 0.5 W (BT2 Models)
Key features
High Efficiency (Up to 94.0%) ; Full Power at Wide Output Current Range (Constant Power) ; Adjustable Output Current (AOC) with NFC ; Input Voltage Range: 176 ~ 305Vac ; DALI-2 and D4i Certified ; Always-on Auxiliary Power: 24Vdc,125mA, 3W (Transient Peak Power up to 10W)
Models
EBS-025S045BT2, EBS-025S070BT2, EBS-025S105BT2, EBS-025S045DT2, EBS-025S070DT2, EBS-025S105DT2, EBS-040S045BT2, EBS-040S070BT2, EBS-040S105BT2, EBS-040S045DT2, EBS-040S070DT2, EBS-040S105DT2, EBS-080S070BT2, EBS-080S105BT2, EBS-080S150BT2, EBS-080S070DT2, EBS-080S105DT2, EBS-080S150DT2, EBS-120S070BT2, EBS-120S105BT2, EBS-120S150BT2, EBS-120S070DT2, EBS-120S105DT2, EBS-120S150DT2, EBS-165S070BT2, EBS-165S105BT2, EBS-165S070DT2, EBS-165S105DT2, EBS-165S150DT2
Model count
29

Models & variants

Choose the exact model.

Values as published by Inventronics. Name the exact model or variant in your RFQ.

ModelValueValue 2EfficiencyLifetime (h)Dimensions (mm)
EBS-025S045BT2300 ~ 45028 ~ 8488.5%
EBS-025S070BT2450 ~ 70018 ~ 5688.5%120,000 Tc=75°C133 x 77 x 33
EBS-025S105BT2700 ~ 105012 ~ 3687.0%
EBS-025S045DT2300 ~ 45028 ~ 8488.5%
EBS-025S070DT2450 ~ 70018 ~ 5688.0%109,000 Tc=75°C133 x 77 x 33
EBS-025S105DT2700 ~ 105012 ~ 3687.5%
EBS-040S045BT2300 ~ 45044 ~ 13390.5%
EBS-040S070BT2450 ~ 70028 ~ 8990.5%110,000 Tc= 75°C133 x 77 x 33
EBS-040S105BT2700 ~ 105019 ~ 5789.5%
EBS-040S045DT2300 ~ 45044 ~ 13390.5%
EBS-040S070DT2450 ~ 70028 ~ 8989.0%104,000 Tc= 75°C133 x 77 x 33
EBS-040S105DT2700 ~ 105019 ~ 5789.5%
EBS-080S070BT2450 ~ 70057 ~ 17892.5%
EBS-080S105BT2700 ~ 105038 ~ 11492.5%100,000 Tc= 75°C133 x 77 x 36
EBS-080S150BT21050 ~ 150027 ~ 7692.0%
EBS-080S070DT2450 ~ 70057 ~ 17892.5%
EBS-080S105DT2700 ~ 105038 ~ 11492.5%120,000 Tc= 75°C133 x 77 x 36
EBS-080S150DT21050 ~ 150027 ~ 7691.5%
EBS-120S070BT2450 ~ 70086 ~ 26693.5%
EBS-120S105BT2700 ~ 105057 ~ 17193.0%120,000 Tc=75°C150 x 85 x 39
EBS-120S150BT21050 ~ 150040 ~ 11493.0%
EBS-120S070DT2450 ~ 70086 ~ 26693.0%
EBS-120S105DT2700 ~ 105057 ~ 17193.0%100,000 Tc=75°C150 x 85 x 39
EBS-120S150DT21050 ~ 150040 ~ 11492.5%
EBS-165S070BT2450 ~ 700118 ~ 36794.0%
EBS-165S105BT2700 ~ 105079 ~ 23694.0%120,000 Tc=75°C170 x 100 x 40
EBS-165S070DT2450 ~ 700118 ~ 36794.0%
EBS-165S105DT2700 ~ 1050115,000 Tc=75°C170 x 100 x 40
EBS-165S150DT21050 ~ 150055 ~ 15794.0%

Documents

Specification sheet & source.

Project Supplies specification sheet

INV-EBS-BT2-DT2

Product image, key data, the full specification, the model table and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-05Inventronics
Open specification sheet

Technical source

Inventronics

Checked 2026-10-05. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
