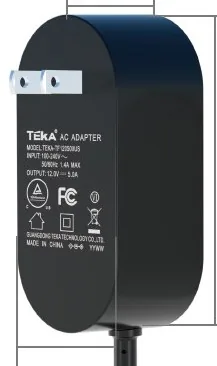

TEKA 65W AC/DC adapter

Name: TEKA 65W AC/DC adapter
Brand: TEKA
SKU: TEKA-WM65W

SKUTEKA-WM65W

TEKA AC/DC adapters & power boards · Power, drivers & controls. Specified, quoted and supplied by Project Supplies for commercial projects.

Main output options12V4A / 12V5A / 24V2A / 24V2.7A

Input100-240V~ 50/60Hz 1.4A MAX

Output12.0V-4.0A / 12.0V-5.0A / 19.0V-3.42A / 24.0V2.0A / 24.0V2.7A

Plug typesAU, BS, CH, EU, EAC, JP, US

Price on requestQuoted for your configuration and quantity.

Technical clarificationTranscribed from the supplied TEKA product catalogue (slide 10). Certification marks and ratings are supplier claims; confirm the exact model, plug type and Australian approvals (RCM/SAA where required) before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

AC/DC adapters & power boards

Key data: main output options 12V4A / 12V5A / 24V2A / 24V2.7A; input 100-240V~ 50/60Hz 1.4A MAX; output 12.0V-4.0A / 12.0V-5.0A / 19.0V-3.42A / 24.0V2.0A / 24.0V2.7A; plug types AU, BS, CH, EU, EAC, JP, US.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Main output options12V4A / 12V5A / 24V2A / 24V2.7A

Input100-240V~ 50/60Hz 1.4A MAX

Output12.0V-4.0A / 12.0V-5.0A / 19.0V-3.42A / 24.0V2.0A / 24.0V2.7A

Plug typesAU, BS, CH, EU, EAC, JP, US

Housing materialPC

Fire rating94 V0

Certification (as published)SAA/RCM/CE/UKCA/CCC/PSE/UL/FCC/EAC/KC

ProtectionsOvercurrent, Short circuit, Lightning/surge, Overvoltage

Specifications

The technical details.

Download specification sheet

Product type: Wall-mount adapter
Main output options: 12V4A / 12V5A / 24V2A / 24V2.7A
Input: 100-240V~ 50/60Hz 1.4A MAX
Output: 12.0V-4.0A / 12.0V-5.0A / 19.0V-3.42A / 24.0V2.0A / 24.0V2.7A
Plug types: AU, BS, CH, EU, EAC, JP, US
Dimensions: Vertical fixed-plug: 32 x 89.5 x 43 mm; Wall-mount (US plug shown): 63 x 63 x 30 mm; Interchangeable-plug: 39 x 89.5 x 43 mm; Desktop: 112.5 x 48.5 x 34.5 mm
Housing material: PC

Fire rating: 94 V0
Certification (as published): SAA/RCM/CE/UKCA/CCC/PSE/UL/FCC/EAC/KC
Protections: Overcurrent, Short circuit, Lightning/surge, Overvoltage
Fixed-plug variants: AU, BS, CH, EU, JP, US
Interchangeable plug heads: AU, BS, CH, EU, EAC, JP, US
Optional AC inlet (desktop version): IEC C14 (3-pin) / IEC C8 (2-pin figure-8) / IEC C6 (3-pin cloverleaf) (inlet types identified from pictured sockets)
Table note: Printed table has a blank separator row between the 65.0 W rows and the 72.0 W rows (omitted here)

Models & variants

Choose the exact model.

Values as published by TEKA. Name the exact model or variant in your RFQ.

Output voltage (V)	Output current (A)	Max power (W)
9.0-20.0	0.01-5.00	65.0
20.1-30.0	0.01-3.40	65.0
30.1-46.0	0.01-2.10	65.0
46.1-59.0	0.01-1.40	65.0
8.0-16.0	0.10-6.00	72.0
16.1-27.0	0.10-4.00	72.0
27.1-40.0	0.10-2.40	72.0
40.1-59.0	0.10-1.79	72.0
