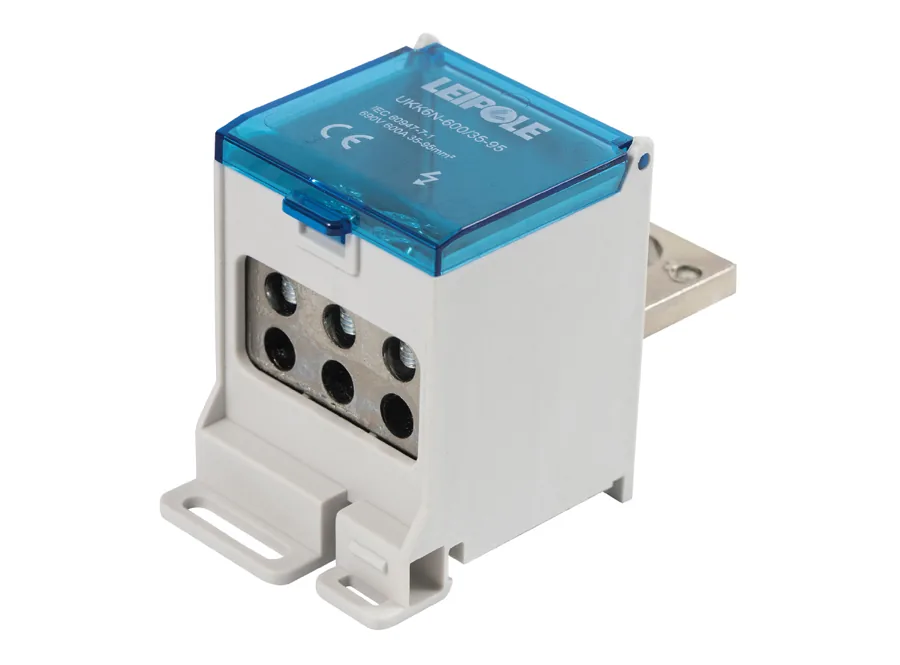

LEIPOLELEIPOLE UKK6N-600/35-95/6X16 Switch Terminal Block 10-35mm² Power Distribution LP-UKK6N-600/35-95/6-16
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE UKK6N-600/35-95/6X16 Switch Terminal Block 10-35mm² Power Distribution

SKULP-UKK6N-600/35-95/6-16

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Cross Section10-35mm²
Output Cross Section1.5-16mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK6N-600/35-95/6X16 adopts a one-input six-output shunt structure. It supports 10-35mm² large cross-section main input wire and 1.5–16mm² branch output wire connection. Built with sturdy structure and excellent conductive performance, it is specially designed for large-current heavy-duty industrial multi-circuit power distribution and shunting. Key Features & Advantages IP20 protection degree for safe indoor electrical cabinet installation 1-in 6-out reasonable shunt layout, compact and space-saving High-quality conductive material ensures stable large-current transmission Standard modular structure, easy installation and circuit wiring CE and RoHS certified to meet ….

Key data: certification CE, RoHS; ip rating IP20; input cross section 10-35mm²; output cross section 1.5-16mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Cross Section10-35mm²

Output Cross Section1.5-16mm²

ModelUKK6N-600/35-95/6×16

SeriesUKK6N-600/35-95

Order Number5012.087

ConnectionOne input, six outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK6N-600/35-95/6×16
Series
UKK6N-600/35-95
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.087
Connection
One input, six outputs
Input Cross Section
10-35mm²
Output Cross Section
1.5-16mm²

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK6N-600/35-95/6-16

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
