LEIPOLELEIPOLE UKK6N-250/16-50/12X16 Switch Terminal Block 16-50mm² Power Distribution LP-UKK6N-250/16-50/12-16
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

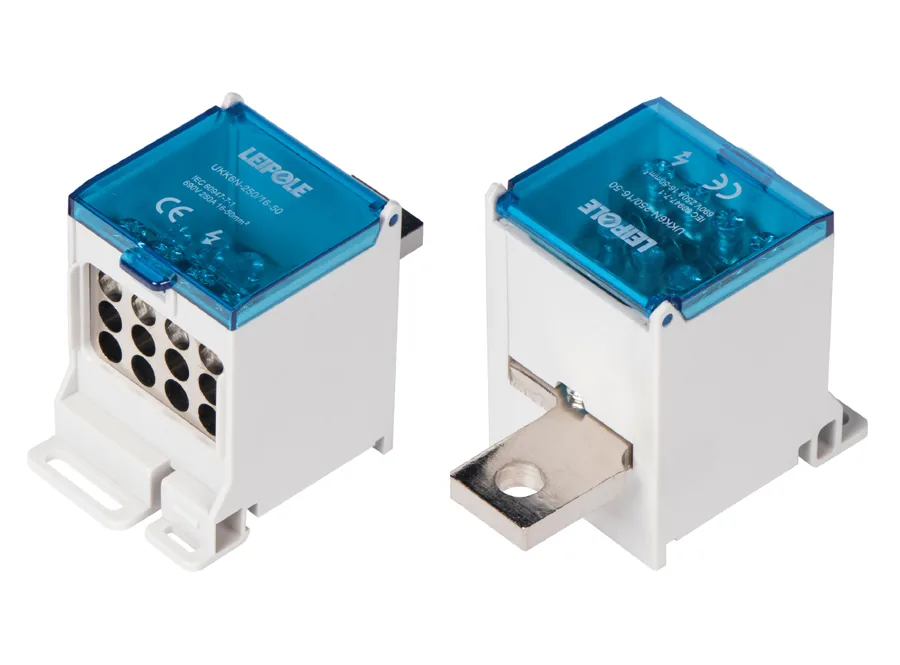

LEIPOLE UKK6N-250/16-50/12X16 Switch Terminal Block 16-50mm² Power Distribution

SKULP-UKK6N-250/16-50/12-16

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Cross Section16-50mm²
Output Cross Section1.5-16mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK6N-250/16-50/12X16 adopts a one-input twelve-output shunt structure. It fits 16–50mm² main input wire and 1.5–16mm² branch output wire connection. With compact overall design and stable conductive performance, it meets high-density multi-circuit power distribution demands for heavy-duty industrial electrical installations. Key Features & Advantages IP20 protection degree, suitable for indoor cabinet safe installation 1-in 12-out high-density layout, saving cabinet installation space Optimized conductive structure, ensuring stable current transmission Standard modular design, easy wiring and assembly CE and RoHS certified for global industrial application Applications ….

Key data: certification CE, RoHS; ip rating IP20; input cross section 16-50mm²; output cross section 1.5-16mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Cross Section16-50mm²

Output Cross Section1.5-16mm²

ModelUKK6N-250/16-50/12×16

SeriesUKK6N-250/16-50

Order Number5012.079

ConnectionOne input, twelve outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK6N-250/16-50/12×16
Series
UKK6N-250/16-50
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.079
Connection
One input, twelve outputs
Input Cross Section
16-50mm²
Output Cross Section
1.5-16mm²
