LEIPOLELEIPOLE UKK6G-400/25-70/8X16 Switch Terminal Block 25-70mm² Power Distribution LP-UKK6G-400/25-70/8-16
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

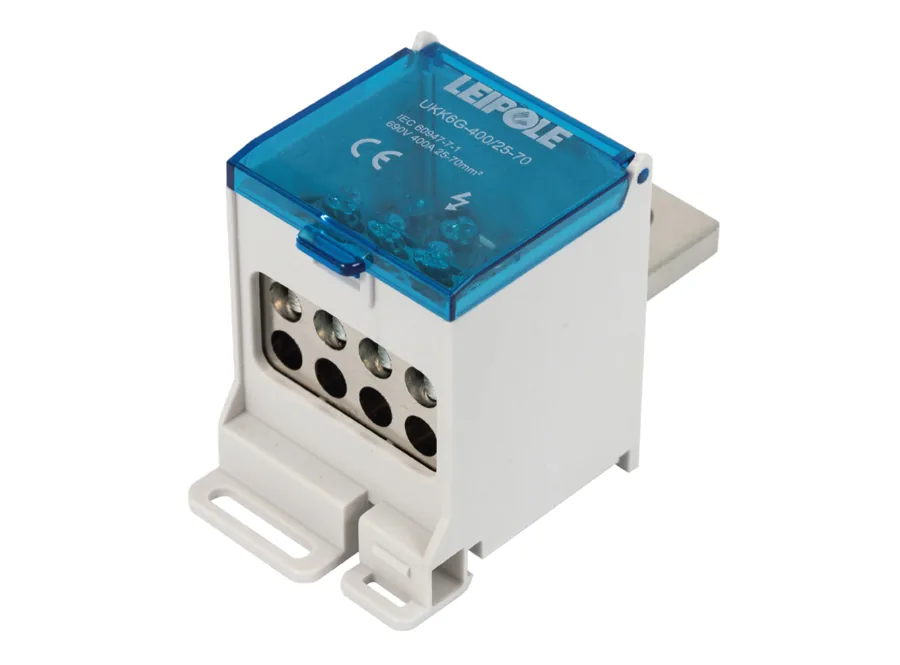

LEIPOLE UKK6G-400/25-70/8X16 Switch Terminal Block 25-70mm² Power Distribution

SKULP-UKK6G-400/25-70/8-16

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Cross Section25-70mm²
Output Cross Section1.5-16mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK6G-400/25-70/8X16 is a switch terminal block with one-input, eight-output connection. It supports input wire cross-section of 25–70mm² and output wire cross-section of 1.5–16mm². It is constructed with flame-retardant insulation material and provides stable multi-branch power distribution for heavy-duty industrial electrical systems. Key Features & Advantages CE and RoHS certified for industrial applications Insulation housing with UL94 V-0 flammability rating IP20 protection class for indoor electrical enclosure environments One-input, eight-output structure for high-density power branching Wide wire cross-section range for heavy-duty industrial power distribution Suitable ….

Key data: certification CE, RoHS; ip rating IP20; input cross section 25-70mm²; output cross section 1.5-16mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Cross Section25-70mm²

Output Cross Section1.5-16mm²

ModelUKK6G-400/25-70/8×16

SeriesUKK6G-400/25-70

Order Number5012.051

ConnectionOne input, eight outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK6G-400/25-70/8×16
Series
UKK6G-400/25-70
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.051
Connection
One input, eight outputs
Input Cross Section
25-70mm²
Output Cross Section
1.5-16mm²

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK6G-400/25-70/8-16

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
