LEIPOLELEIPOLE UKK6G-250/16-50/4X16 Switch Terminal Block 16-50mm² Power Distribution LP-UKK6G-250/16-50/4-16
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

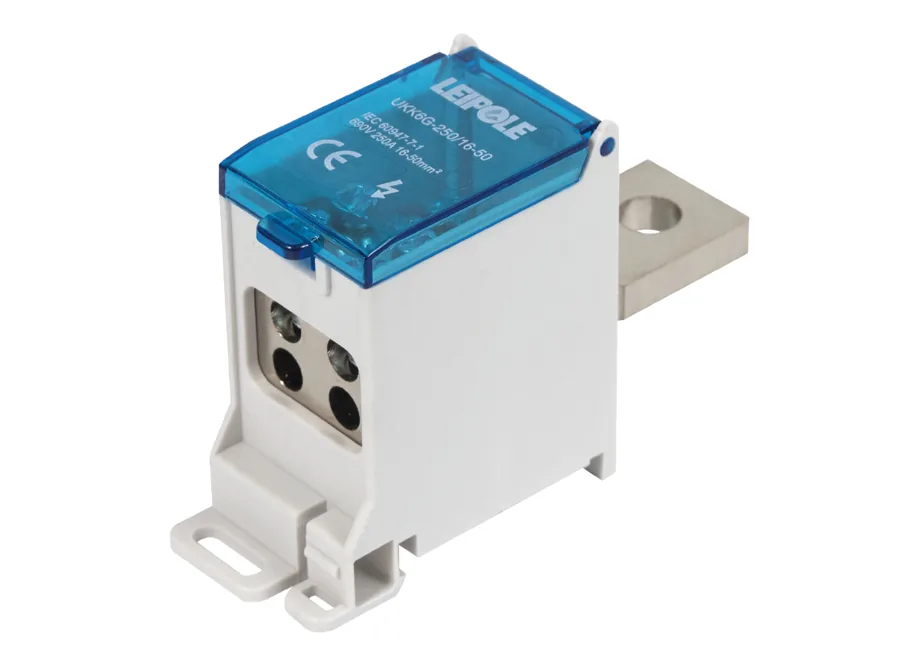

LEIPOLE UKK6G-250/16-50/4X16 Switch Terminal Block 16-50mm² Power Distribution

SKULP-UKK6G-250/16-50/4-16

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Cross Section16-50mm²
Output Cross Section1.5-16mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK6G-250/16-50/4X16 is a switch terminal block with one-input, four-output connection. It supports input wire cross-section of 16–50mm² and output wire cross-section of 1.5–16mm². It uses flame-retardant insulation material and delivers stable multi-branch power distribution for industrial electrical systems. Key Features & Advantages CE and RoHS certified for industrial applications Insulation housing with UL94 V-0 flammability rating IP20 protection class for indoor electrical enclosure use One-input, four-output structure for organized power branching Wide wire cross-section range for heavy-duty industrial power distribution Suitable Industries Machinery and systems ….

Key data: certification CE, RoHS; ip rating IP20; input cross section 16-50mm²; output cross section 1.5-16mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Cross Section16-50mm²

Output Cross Section1.5-16mm²

ModelUKK6G-250/16-50/4×16

SeriesUKK6G-250/16-50

Order Number5012.042

ConnectionOne input, four outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK6G-250/16-50/4×16
Series
UKK6G-250/16-50
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.042
Connection
One input, four outputs
Input Cross Section
16-50mm²
Output Cross Section
1.5-16mm²
