LEIPOLELEIPOLE UKK6/47/2X10 Switch Terminal Block 63 Type 1.5-10mm² Power Distribution LP-UKK6/47/2-10
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

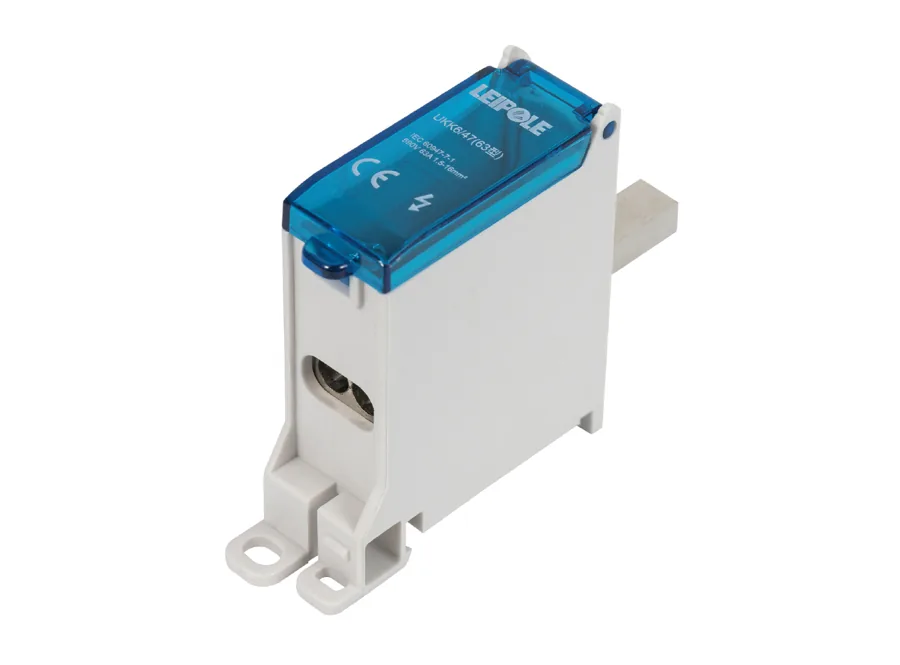

LEIPOLE UKK6/47/2X10 Switch Terminal Block 63 Type 1.5-10mm² Power Distribution

SKULP-UKK6/47/2-10

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Type(63 type) pin type
Output Cross Section1.5-10mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK6/47/2X10 is a pin-type switch terminal block in 63-type specification. It uses a one-input, two-output wiring structure and supports a wire cross-section of 1.5–10mm². It is made of flame-retardant insulating material and provides stable connections for power distribution in electrical cabinets and industrial control systems. Key Features & Advantages Complies with CE and RoHS certification requirements Insulation material rated UL94 V-0 for flammability Protection class IP20 for safe operation in standard enclosure environments 63-type pin-type structure for consistent and secure wiring One-input, two-output design for simplified power branching Suitable Industries Suitable ….

Key data: certification CE, RoHS; ip rating IP20; input type (63 type) pin type; output cross section 1.5-10mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Type(63 type) pin type

Output Cross Section1.5-10mm²

ModelUKK6/47/2×10

SeriesUKK6/47 (63 type)

Order Number5012.019

ConnectionOne input, two outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK6/47/2×10
Series
UKK6/47 (63 type)
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.019
Connection
One input, two outputs
Input Type
(63 type) pin type
Output Cross Section
1.5-10mm²

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK6/47/2-10

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
