LEIPOLELEIPOLE UKK 80A Power Distribution Block, Industrial Electrical Connection, 80A LP-UKK-80A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

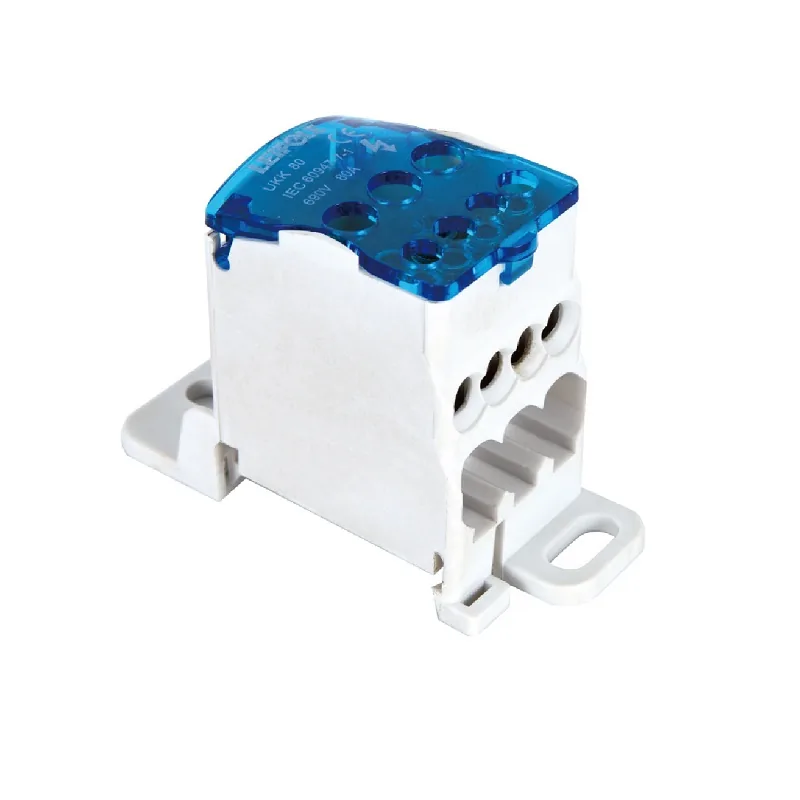

LEIPOLE UKK 80A Power Distribution Block, Industrial Electrical Connection, 80A

SKULP-UKK-80A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=80A IEC 60947-7-1, I=85A UL/CSA
Impulse withstand voltage (Ui)690V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 80A is a professional power distribution block designed for safe and reliable electrical connection and branching in industrial control panels and electrical enclosures. It conforms to IEC 60947-7-1 and UL/CSA standards, providing stable performance for low-voltage power distribution systems. Key Specifications This power distribution block is CE certified with IP20 ingress protection. It has a rated current of 80A (IEC 60947-7-1) and 85A (UL/CSA). Icw KA rms 1s is 3kA, IPk KA is 22kA, rated insulation voltage Ui is 690V (IEC), and rated operating voltage Vin is 600V (UL). The installation hole measures 54mm for standardized mounting. Key Features & Advantages Supports ….

Key data: certification CE; ip rating IP20; rated current I=80A IEC 60947-7-1, I=85A UL/CSA; impulse withstand voltage 690V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=80A IEC 60947-7-1, I=85A UL/CSA

Impulse withstand voltage (Ui)690V IEC

Insulation voltage (Vin UL)600V UL

Rated short-time withstand current (Icw kA rms 1s)3

Rated peak withstand current (IPk kA)22

ModelUKK 80A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 80A
Certification
CE
IP Rating
IP20
Order Number
5012.006
Rated Current (IEC/UL)
I=80A IEC 60947-7-1, I=85A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
3
Rated peak withstand current (IPk kA)
22
Installation Hole
54mm
Special Feature
Blocks can be connected in parallel using jumper, easily double or triple the neutral

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-80A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
