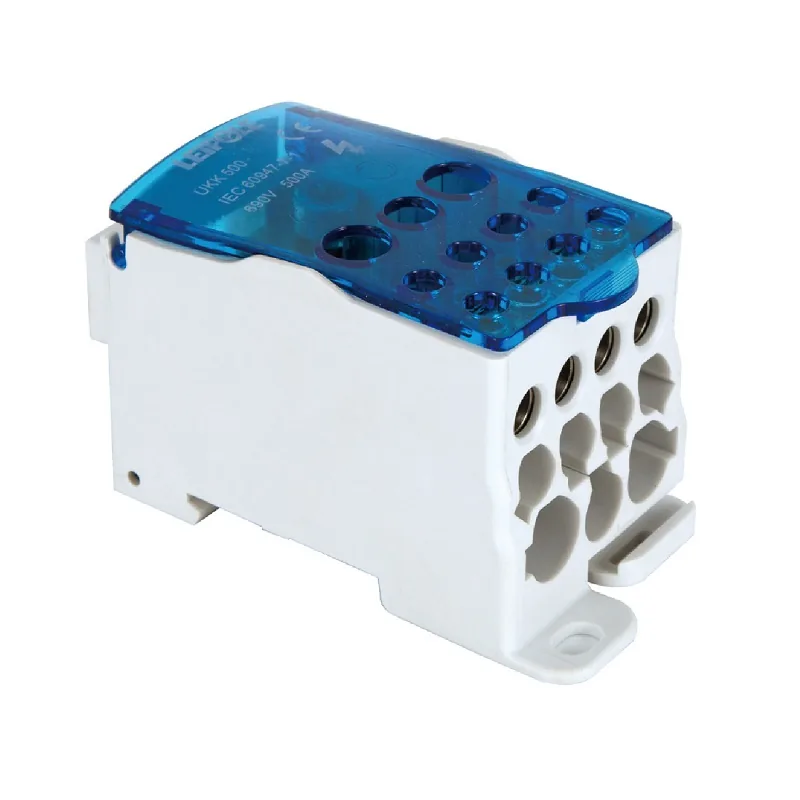

LEIPOLELEIPOLE UKK 500A Power Distribution Block, Industrial Power Distribution, 500A LP-UKK-500A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE UKK 500A Power Distribution Block, Industrial Power Distribution, 500A

SKULP-UKK-500A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=500A IEC 60947-7-1, I=520A UL/CSA
Impulse withstand voltage (Ui)690 V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 500A is a high-capacity power distribution block developed for stable power branching and connection in heavy-duty industrial electrical systems. It conforms to IEC 60947-7-1 and UL/CSA standards, designed for high-power industrial power distribution scenarios. Key Features & Advantages Compatible with both metric and AWG wiring standards for global industrial applications Allows parallel connection using jumpers while retaining one input terminal Accommodates multiple cable cross-section ranges for diversified wiring needs Durable structure for sustained and reliable operation in industrial environments Installation & Wiring This unit is equipped with an 85×29mm ….

Key data: certification CE; ip rating IP20; rated current I=500A IEC 60947-7-1, I=520A UL/CSA; impulse withstand voltage 690 V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=500A IEC 60947-7-1, I=520A UL/CSA

Impulse withstand voltage (Ui)690 V IEC

Insulation voltage (Vin UL)600 V UL

Rated short-time withstand current (Icw kA rms 1s)24.5

Rated peak withstand current (IPk kA)51

ModelUKK 500A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 500A
Certification
CE
IP Rating
IP20
Order Number
5012.011
Rated Current (IEC/UL)
I=500A IEC 60947-7-1, I=520A UL/CSA
Impulse withstand voltage (Ui)
690 V IEC
Insulation voltage (Vin UL)
600 V UL
Rated short-time withstand current (Icw kA rms 1s)
24.5
Rated peak withstand current (IPk kA)
51
Installation Hole
85×29mm
Special Feature
Can be connected in parallel using jumper, easily double the neutral

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-500A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
