LEIPOLELEIPOLE UKK 400A Power Distribution Block, Industrial Power Distribution, 400A LP-UKK-400A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

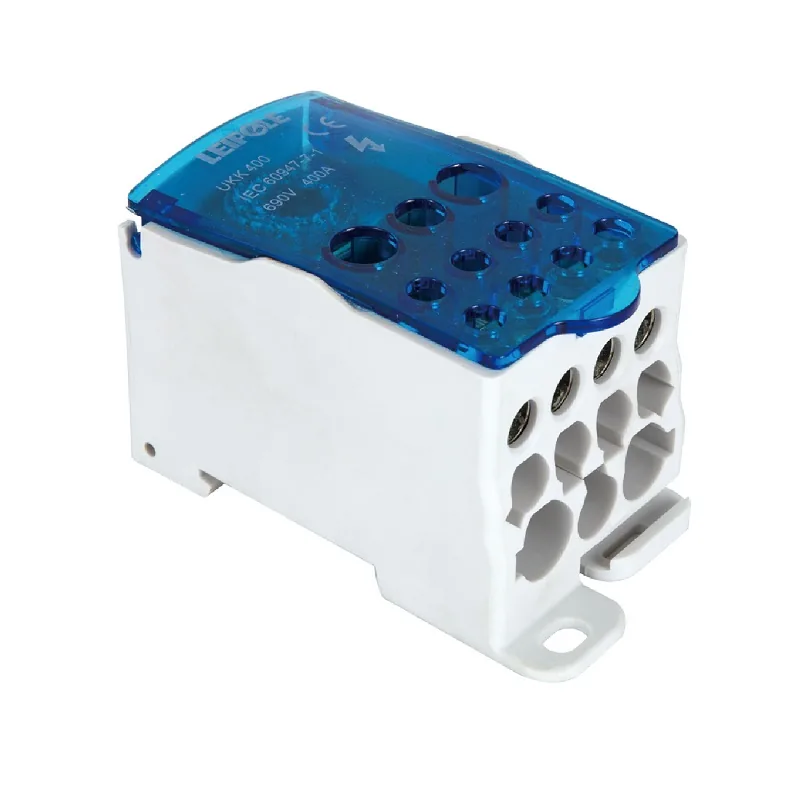

LEIPOLE UKK 400A Power Distribution Block, Industrial Power Distribution, 400A

SKULP-UKK-400A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=400A IEC 60947-7-1, I=335A UL/CSA
Impulse withstand voltage (Ui)690V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 400A is a high-capacity power distribution block built for stable power branching and connection in heavy-duty industrial electrical systems. It complies with IEC 60947-7-1 and UL/CSA standards, suitable for high-power distribution applications. Key Features & Advantages Supports versatile single-pole, 2-pole, 3-pole, and 4-pole power block assembly Works with both metric and AWG wiring specifications for global industrial use Supports parallel connection with one input retained for expanded wiring capacity Accommodates wide ranges of cable cross-sections for flexible wiring setup Rugged structure for continuous and reliable industrial operation Installation & Wiring This ….

Key data: certification CE; ip rating IP20; rated current I=400A IEC 60947-7-1, I=335A UL/CSA; impulse withstand voltage 690V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=400A IEC 60947-7-1, I=335A UL/CSA

Impulse withstand voltage (Ui)690V IEC

Insulation voltage (Vin UL)600V UL

Rated short-time withstand current (Icw kA rms 1s)24.5

Rated peak withstand current (IPk kA)51

ModelUKK 400A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 400A
Certification
CE
IP Rating
IP20
Order Number
5012.010
Rated Current (IEC/UL)
I=400A IEC 60947-7-1, I=335A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
24.5
Rated peak withstand current (IPk kA)
51
Installation Hole
85×29mm
Special Feature
Allows versatile building of power blocks (single pole, two pole, three pole or four pole)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-400A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
