LEIPOLELEIPOLE UKK 250A-11K Power Distribution Block, Industrial Wiring, 250A LP-UKK-250A-11K
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

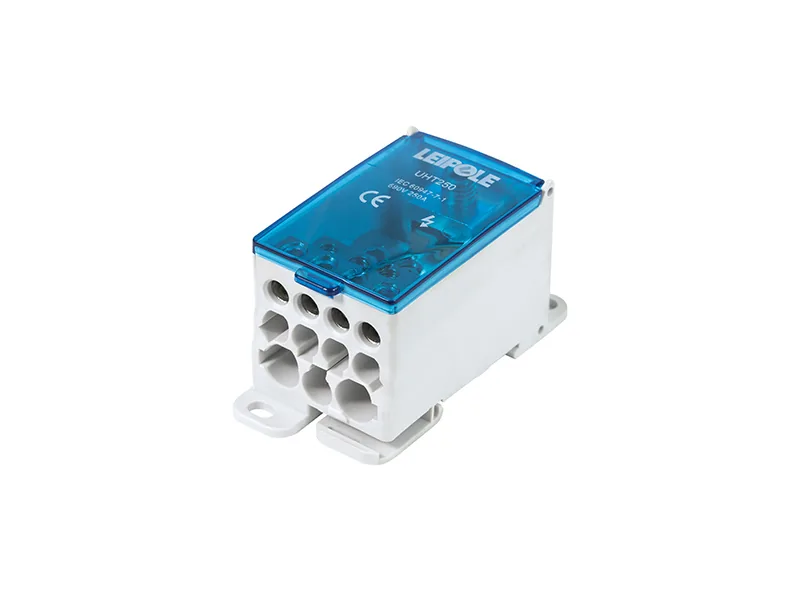

LEIPOLE UKK 250A-11K Power Distribution Block, Industrial Wiring, 250A

SKULP-UKK-250A-11K

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, UL
IP RatingIP20
Rated Current (IEC/UL)I=250A IEC 60947-7-1, I=255A UL/CSA
Impulse withstand voltage (Ui)690 V AC/DC IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 250A-11K is a modular power distribution block designed for stable power branching and connection in industrial electrical systems. It conforms to IEC 60947-7-1 and UL standards, suitable for medium-to-high power distribution tasks in industrial cabinets. Key Features & Advantages Modular single modules that can be plugged and combined into multi-level configurations Compatible with metric and AWG wiring specifications for global industrial application Supports parallel connection via jumpers while keeping one input terminal Accommodates multiple cable cross-section ranges for flexible wiring setup Durable structure for reliable continuous operation in industrial ….

Key data: certification CE, UL; ip rating IP20; rated current I=250A IEC 60947-7-1, I=255A UL/CSA; impulse withstand voltage 690 V AC/DC IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, UL

IP RatingIP20

Rated Current (IEC/UL)I=250A IEC 60947-7-1, I=255A UL/CSA

Impulse withstand voltage (Ui)690 V AC/DC IEC

Insulation voltage (Vin UL)600 V UL

Rated short-time withstand current (Icw kA rms 1s)≤24.5

Rated peak withstand current (IPk kA)51

ModelUKK 250A-11K

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 250A-11K
Certification
CE, UL
IP Rating
IP20
Order Number
5012.130
Rated Current (IEC/UL)
I=250A IEC 60947-7-1, I=255A UL/CSA
Impulse withstand voltage (Ui)
690 V AC/DC IEC
Insulation voltage (Vin UL)
600 V UL
Rated short-time withstand current (Icw kA rms 1s)
≤24.5
Rated peak withstand current (IPk kA)
51
Modularity
Single modules can be plugged and combined into multi-level modules

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-250A-11K

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
