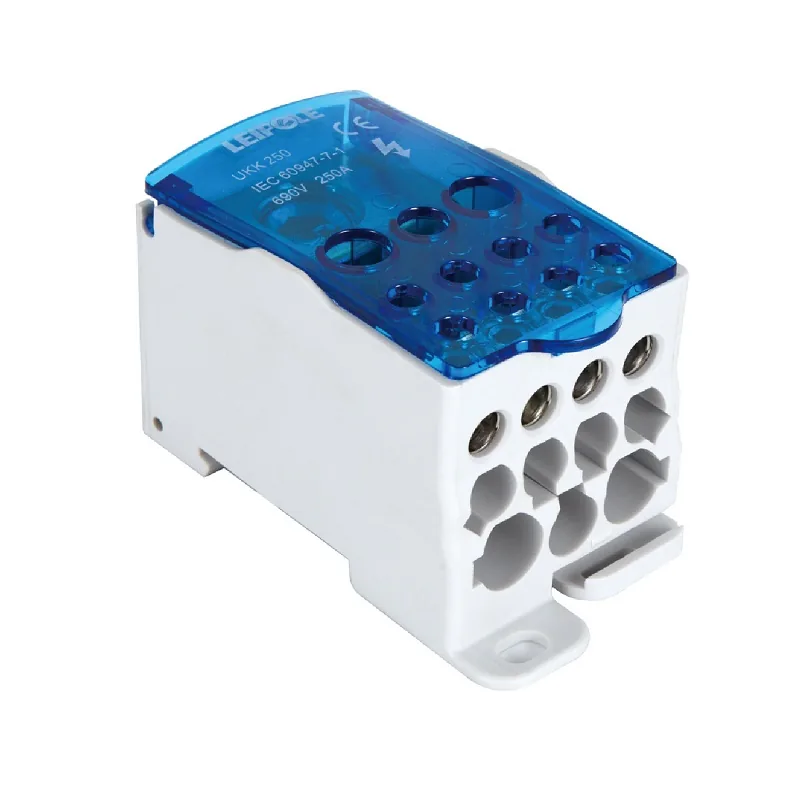

LEIPOLELEIPOLE UKK 250A Power Distribution Block, Industrial Power Distribution, 250A LP-UKK-250A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE UKK 250A Power Distribution Block, Industrial Power Distribution, 250A

SKULP-UKK-250A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=250A IEC 60947-7-1, I=255A UL/CSA
Impulse withstand voltage (Ui)690V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 250A is a high-capacity power distribution block designed for stable power branching and connection in industrial electrical systems. It complies with IEC 60947-7-1 and UL/CSA standards, suitable for medium-to-high power distribution requirements. Key Features & Advantages Supports versatile single-pole, 2-pole, 3-pole, and 4-pole power block assembly Works with both metric and AWG wiring specifications for global applications Supports parallel connection with one input retained for expanded capacity Compatible with multi-size cable cross-sections for flexible wiring Robust construction for continuous industrial operation Installation & Wiring This unit uses an 85×29mm ….

Key data: certification CE; ip rating IP20; rated current I=250A IEC 60947-7-1, I=255A UL/CSA; impulse withstand voltage 690V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=250A IEC 60947-7-1, I=255A UL/CSA

Impulse withstand voltage (Ui)690V IEC

Insulation voltage (Vin UL)600V UL

Rated short-time withstand current (Icw kA rms 1s)24.5

Rated peak withstand current (IPk kA)51

ModelUKK 250A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 250A
Certification
CE
IP Rating
IP20
Order Number
5012.009
Rated Current (IEC/UL)
I=250A IEC 60947-7-1, I=255A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
24.5
Rated peak withstand current (IPk kA)
51
Installation Hole
85×29mm
Special Feature
Allows versatile building of power blocks (single pole, two pole, three pole or four pole)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-250A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
