LEIPOLELEIPOLE UKK 160A-8K Power Distribution Block, Industrial Wiring, 160A LP-UKK-160A-8K
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

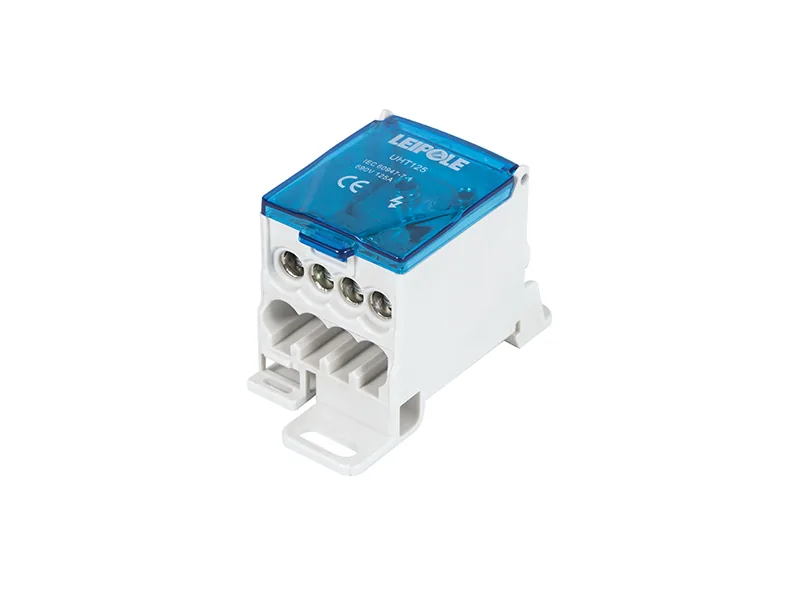

LEIPOLE UKK 160A-8K Power Distribution Block, Industrial Wiring, 160A

SKULP-UKK-160A-8K

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, UL
IP RatingIP20
Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=150A UL/CSA
Impulse withstand voltage (Ui)690 V AC/DC IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 160A-8K is a modular power distribution block built for reliable power branching and connection in industrial electrical systems. It complies with IEC 60947-7-1 and UL standards, providing stable performance for various industrial power distribution setups. Key Features & Advantages Modular single modules that can be plugged and combined into multi-level assemblies Works with both metric and AWG wiring specifications for global industrial applications Supports parallel connection via jumpers while retaining one input terminal Enables neutral doubling for flexible circuit layout Stable structure for consistent long-term operation Installation & Wiring This unit supports ….

Key data: certification CE, UL; ip rating IP20; rated current I=125A IEC 60947-7-1, I=150A UL/CSA; impulse withstand voltage 690 V AC/DC IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, UL

IP RatingIP20

Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=150A UL/CSA

Impulse withstand voltage (Ui)690 V AC/DC IEC

Insulation voltage (Vin UL)600 V UL

Rated short-time withstand current (Icw kA rms 1s)11.8

Rated peak withstand current (IPk kA)30

ModelUKK 160A-8K

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 160A-8K
Certification
CE, UL
IP Rating
IP20
Order Number
5012.129
Rated Current (IEC/UL)
I=125A IEC 60947-7-1, I=150A UL/CSA
Impulse withstand voltage (Ui)
690 V AC/DC IEC
Insulation voltage (Vin UL)
600 V UL
Rated short-time withstand current (Icw kA rms 1s)
11.8
Rated peak withstand current (IPk kA)
30
Modularity
Single modules can be plugged and combined into multi-level modules

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-160A-8K

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
