LEIPOLELEIPOLE UKK 160A Power Distribution Block, Industrial Power Connection, 160A LP-UKK-160A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

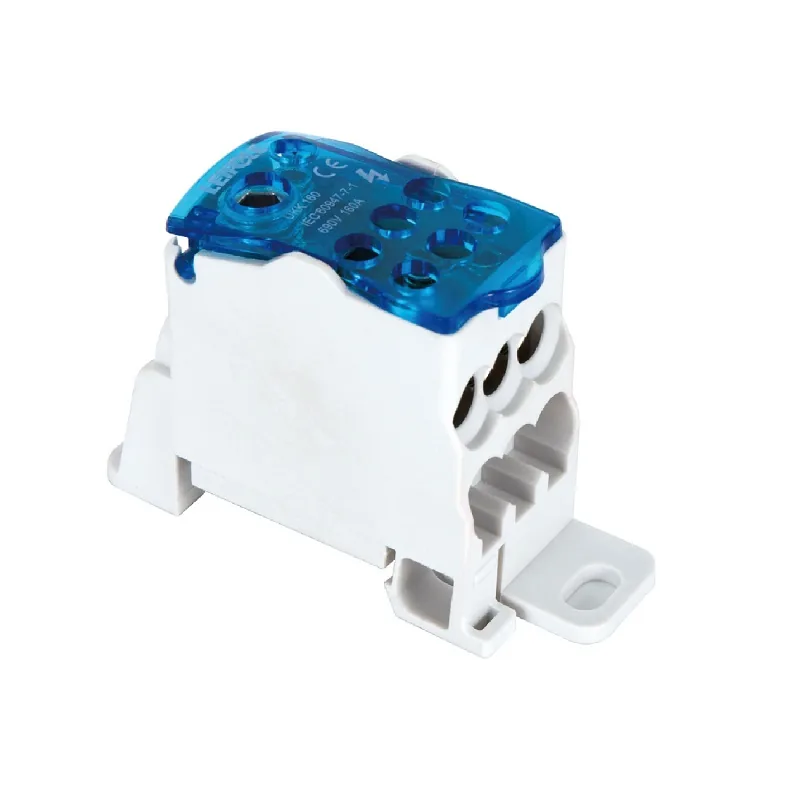

LEIPOLE UKK 160A Power Distribution Block, Industrial Power Connection, 160A

SKULP-UKK-160A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=160A IEC 60947-7-1, I=200A UL/CSA
Impulse withstand voltage (Ui)690V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 160A is a dedicated power distribution block engineered for safe and efficient power branching in industrial electrical systems. It meets IEC 60947-7-1 and UL/CSA standards, providing reliable performance for medium-power distribution tasks. Key Features & Advantages Supports multiple metric wiring ranges with standard torque values Works with AWG wiring specifications for North American market applications Supports parallel connection via jumpers while keeping one input terminal Enables neutral doubling for flexible circuit layout Stable mechanical structure for long-term industrial use Installation & Wiring The unit features a 64mm installation hole for standardized ….

Key data: certification CE; ip rating IP20; rated current I=160A IEC 60947-7-1, I=200A UL/CSA; impulse withstand voltage 690V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=160A IEC 60947-7-1, I=200A UL/CSA

Impulse withstand voltage (Ui)690V IEC

Insulation voltage (Vin UL)600V UL

Rated short-time withstand current (Icw kA rms 1s)11.8

Rated peak withstand current (IPk kA)30

ModelUKK 160A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 160A
Certification
CE
IP Rating
IP20
Order Number
5012.008
Rated Current (IEC/UL)
I=160A IEC 60947-7-1, I=200A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
11.8
Rated peak withstand current (IPk kA)
30
Installation Hole
64mm
Special Feature
Blocks can be connected in parallel using jumper, easily double the neutral

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-160A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
