LEIPOLELEIPOLE UKK 125A-8K Power Distribution Block, Industrial Panel Wiring, 125A LP-UKK-125A-8K
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

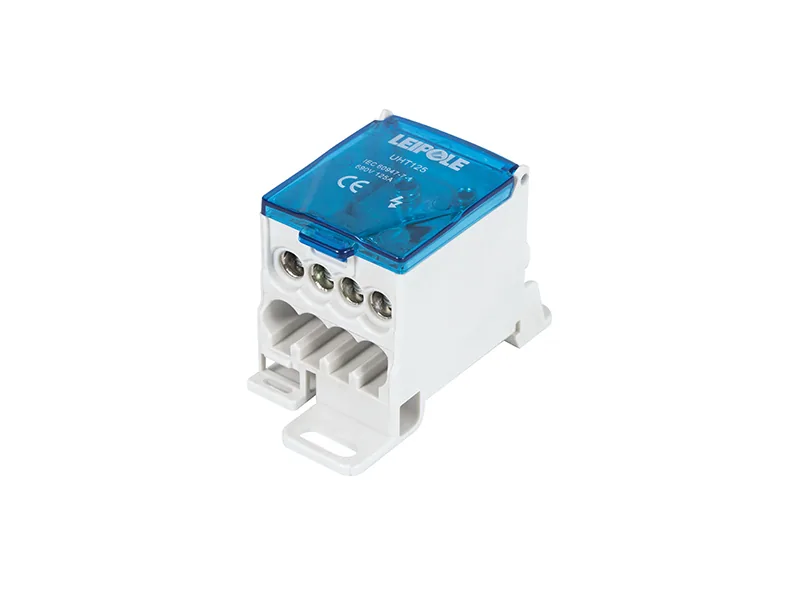

LEIPOLE UKK 125A-8K Power Distribution Block, Industrial Panel Wiring, 125A

SKULP-UKK-125A-8K

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, UL
IP RatingIP20
Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=130A UL/CSA
Impulse withstand voltage (Ui)690 V AC/DC IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 125A-8K is a modular power distribution block designed for safe and stable power branching in industrial electrical systems. It meets IEC 60947-7-1 and UL standards, with a compact structure for flexible cabinet layout. Key Features & Advantages Modular single modules that can be plugged and combined into multi-level assemblies Compatible with metric and AWG wiring specifications for global usage Supports parallel connection using jumpers while keeping one input terminal Allows neutral doubling or tripling for flexible circuit configuration Reliable construction for continuous industrial operation Installation & Wiring This unit has an installation dimension of 49.3mm and ….

Key data: certification CE, UL; ip rating IP20; rated current I=125A IEC 60947-7-1, I=130A UL/CSA; impulse withstand voltage 690 V AC/DC IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, UL

IP RatingIP20

Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=130A UL/CSA

Impulse withstand voltage (Ui)690 V AC/DC IEC

Insulation voltage (Vin UL)600 V UL

Rated short-time withstand current (Icw kA rms 1s)4.2

Rated peak withstand current (IPk kA)30

ModelUKK 125A-8K

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 125A-8K
Certification
CE, UL
IP Rating
IP20
Order Number
5012.128
Rated Current (IEC/UL)
I=125A IEC 60947-7-1, I=130A UL/CSA
Impulse withstand voltage (Ui)
690 V AC/DC IEC
Insulation voltage (Vin UL)
600 V UL
Rated short-time withstand current (Icw kA rms 1s)
4.2
Rated peak withstand current (IPk kA)
30
Modularity
Single modules can be plugged and combined into multi-level modules

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-125A-8K

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
