LEIPOLELEIPOLE UKK 125A Power Distribution Block, Industrial Wiring, 125A LP-UKK-125A
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

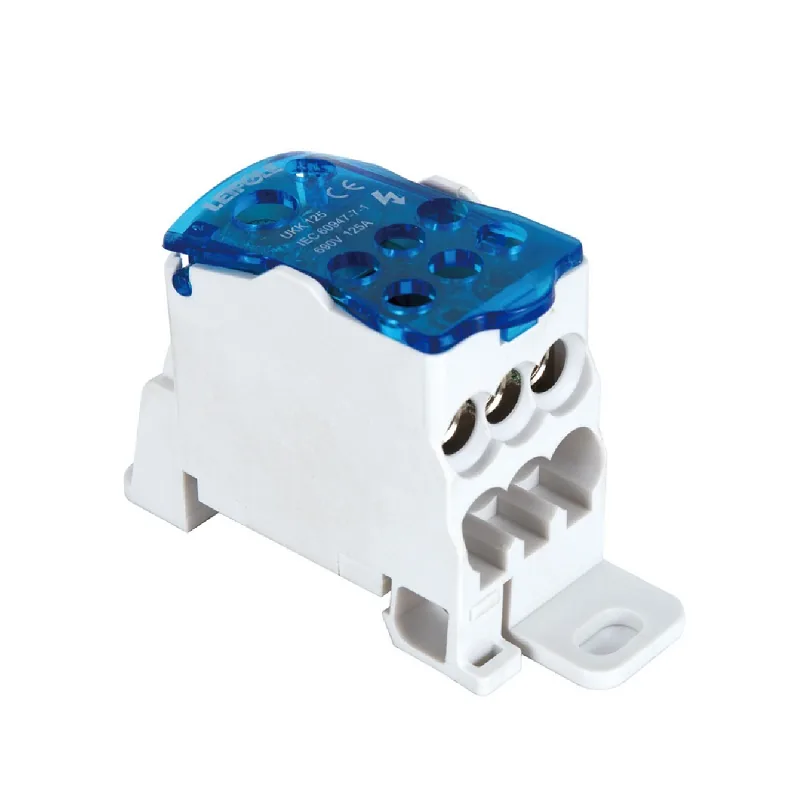

LEIPOLE UKK 125A Power Distribution Block, Industrial Wiring, 125A

SKULP-UKK-125A

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE
IP RatingIP20
Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=150A UL/CSA
Impulse withstand voltage (Ui)690V IEC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UKK 125A is a heavy-duty power distribution block built for stable power branching and connection in industrial electrical systems. It complies with IEC 60947-7-1 and UL/CSA requirements, delivering consistent performance for industrial panel and enclosure applications. Key Specifications This unit is CE certified with an IP20 ingress protection rating. It provides a rated current of 125A (IEC 60947-7-1) and 150A (UL/CSA). Icw KA rms 1s is 4.2kA, IPk KA is 30kA. Rated insulation voltage Ui is 690V (IEC), rated operational voltage Vin is 600V (UL). Installation hole dimension is 64mm. Key Features & Advantages Supports multiple metric wiring ranges with defined torque settings ….

Key data: certification CE; ip rating IP20; rated current I=125A IEC 60947-7-1, I=150A UL/CSA; impulse withstand voltage 690V IEC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE

IP RatingIP20

Rated Current (IEC/UL)I=125A IEC 60947-7-1, I=150A UL/CSA

Impulse withstand voltage (Ui)690V IEC

Insulation voltage (Vin UL)600V UL

Rated short-time withstand current (Icw kA rms 1s)4.2

Rated peak withstand current (IPk kA)30

ModelUKK 125A

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UKK 125A
Certification
CE
IP Rating
IP20
Order Number
5012.007
Rated Current (IEC/UL)
I=125A IEC 60947-7-1, I=150A UL/CSA
Impulse withstand voltage (Ui)
690V IEC
Insulation voltage (Vin UL)
600V UL
Rated short-time withstand current (Icw kA rms 1s)
4.2
Rated peak withstand current (IPk kA)
30
Installation Hole
64mm
Special Feature
Blocks can be connected in parallel using jumper, easily double or triple the neutral

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UKK-125A

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
