LEIPOLELEIPOLE UHTT-250/35-120/6X16 Power Distribution Block, Industrial Terminal Block LP-UHTT-250/35-120/6-16
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

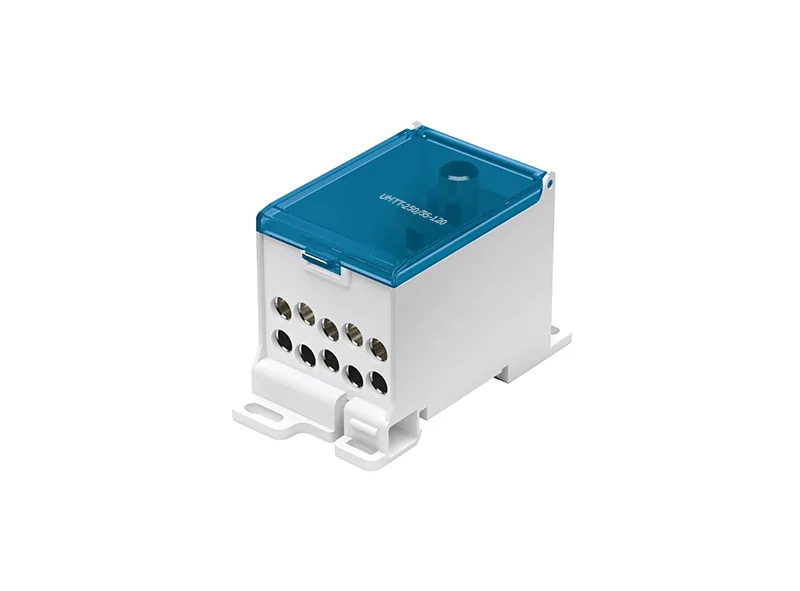

LEIPOLE UHTT-250/35-120/6X16 Power Distribution Block, Industrial Terminal Block

SKULP-UHTT-250/35-120/6-16

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, RoHS
IP RatingIP20
Input Cross Section35-120mm²
Output Cross Section4-16mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

The LEIPOLE UHTT-250/35-120/6X16 is a high-current industrial power distribution terminal block with 1-in 6-out layout. It is designed for low-voltage power shunting in industrial cabinets, featuring outstanding current load capacity, reliable conductive performance and standard safety certification for long-term heavy-duty operation. Key Features & Advantages Integrated 1-input 6-output design for centralized and orderly power branching High current carrying capacity, stable performance under long-term heavy load High-quality conductive material ensures low contact resistance and safe power transmission Compact integrated structure, saves cabinet installation space IP20 protection level ….

Key data: certification CE, RoHS; ip rating IP20; input cross section 35-120mm²; output cross section 4-16mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, RoHS

IP RatingIP20

Input Cross Section35-120mm²

Output Cross Section4-16mm²

ModelUHTT-250/35-120/6×16

SeriesUHTT-250/35-120

Order Number5012.151

ConnectionOne input, six outputs

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
UHTT-250/35-120/6×16
Series
UHTT-250/35-120
Certification
CE, RoHS
IP Rating
IP20
Order Number
5012.151
Connection
One input, six outputs
Input Cross Section
35-120mm²
Output Cross Section
4-16mm²

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-UHTT-250/35-120/6-16

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
