LEIPOLEStandard Filter Fan 195m³/h (115CFM) Electric Cabinet | FK9922.115 LP-FK9922.115
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

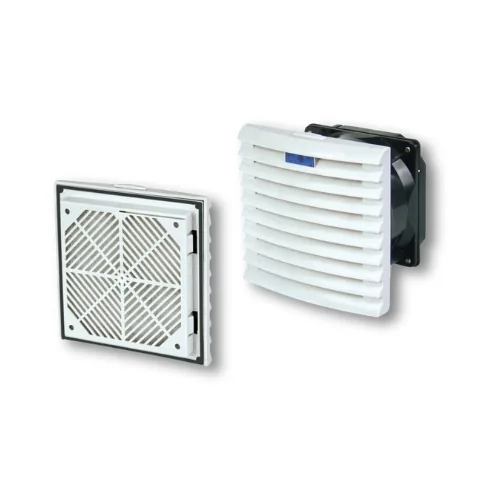

Standard Filter Fan 195m³/h (115CFM) Electric Cabinet | FK9922.115

SKULP-FK9922.115

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

ColorRAL7035
Rate Voltage115V AC
Air Flow72/75 m³/h (IP54)
Rated Current0.34/0.28 A
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Comprehensive Fan Filter for Precision Ventilation and Filtration Applications Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance Specialized box fan filter assemblies for industrial and agricultural air filtration needs Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments Customizable control panel ventilation fans with various mounting options and airflow configurations Available airflow ….

Key data: color RAL7035; rate voltage 115V AC; air flow 72/75 m³/h (IP54); rated current 0.34/0.28 A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

ColorRAL7035

Rate Voltage115V AC

Air Flow72/75 m³/h (IP54)

Rated Current0.34/0.28 A

Power25/21W

Dimension148.5*148.5 mm

Cut-out Size124*124mm

ModelFK9922.115

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
FK9922.115
Part Number
FK9922.115
Color
RAL7035
Order Code
2023.002
Fan Model
F2E-120S-115
Rate Voltage
115V AC
Air Flow
72/75 m³/h (IP54)
Rated Current
0.34/0.28 A
Power
25/21W
Motor Type
Shaded-pole motor
Noise Level
50/52 dB
Exit Filter
FK9922.300
Dimension
148.5*148.5 mm
Cut-out Size
124*124mm

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-FK9922.115

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
