LEIPOLELEIPOLE R100100 Wiring Duct, 100x100mm, for Industrial Electrical Enclosure Cable Management LP-R100100
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE R100100 Wiring Duct, 100x100mm, for Industrial Electrical Enclosure Cable Management

SKULP-R100100

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Size (W x H)100 x 100 mm
Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)
ModelR100100
MaterialLead-free rigid PVC
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

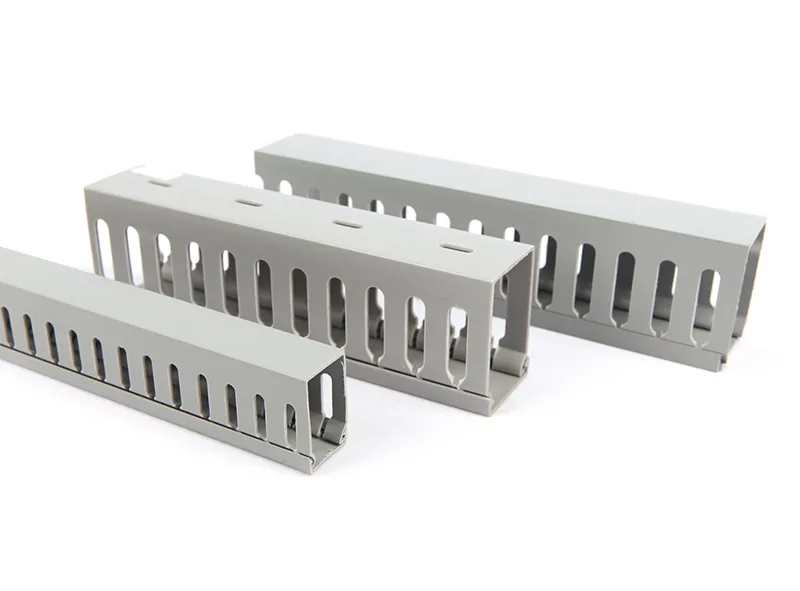

LEIPOLE R100100 wiring duct is made of lead-free rigid PVC material. It uses wide slot and finger construction to improve sidewall rigidity and adapt to different wire bundle sizes. The product is equipped with DIN 43 659 mounting holes and supplied with a matching cover. Key Features & Advantages Lead-free rigid PVC material for industrial electrical environments Wide slot and finger design increases sidewall rigidity UL94 V-0 flammability rating for safe operation UL recognized for continuous use at 50°C DIN 43 659 mounting holes for stable installation Duct and cover provided as one complete set Applications Ventilation technology Suitable for cable routing in ventilation system ….

Key data: size 100 x 100 mm; color options Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005); model R100100; material Lead-free rigid PVC.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Size (W x H)100 x 100 mm

Color optionsGray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)

ModelR100100

MaterialLead-free rigid PVC

Flammability ratingUL94 V-0

Continuous use temperature50°C (122°F), UL Recognized

Base typeLarge Base

Standard length2 meters (also available in 6-inch lengths)

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
R100100
Product type
Wiring Duct (Cable Management Trunking)
Material
Lead-free rigid PVC
Flammability rating
UL94 V-0
Continuous use temperature
50°C (122°F), UL Recognized
Size (W x H)
100 x 100 mm
Base type
Large Base
Standard length
2 meters (also available in 6-inch lengths)
Slot design
Wide slot/finger design for enhanced sidewall rigidity and compatibility with larger wire bundles
Mounting standard
Pre-punched with DIN 43 659 mounting holes
Color options
Gray (RAL7030), Blue (RAL5015), White (RAL9016), Black (RAL9005)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-R100100

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
