LEIPOLEHigh Flow Cooling Fan 1050m³/h (618CFM) Cabinet | FK9926.230 LP-FK9926.230
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

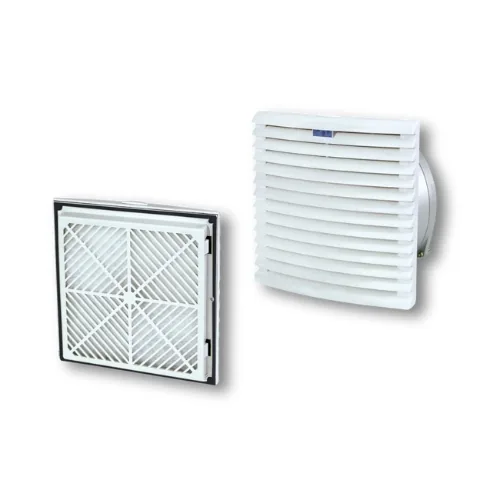

High Flow Cooling Fan 1050m³/h (618CFM) Cabinet | FK9926.230

SKULP-FK9926.230

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

ColorRAL7035
Rate Voltage230V AC
Air Flow450/500m³/h (IP54)
Rated Current0.32/0.30 A
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Comprehensive Fan Filter for Precision Ventilation and Filtration Applications Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance Specialized box fan filter assemblies for industrial and agricultural air filtration needs Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments Customizable control panel ventilation fans with various mounting options and airflow configurations Available airflow ….

Key data: color RAL7035; rate voltage 230V AC; air flow 450/500m³/h (IP54); rated current 0.32/0.30 A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

ColorRAL7035

Rate Voltage230V AC

Air Flow450/500m³/h (IP54)

Rated Current0.32/0.30 A

Power64/71W

Dimension320*320mm

Cut-out Size292x298mm

ModelFK9926.230

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
FK9926.230
Part Number
FK9926.230
Color
RAL7035
Order Code
2023.031
Fan Model
F2E-260B-230
Rate Voltage
230V AC
Air Flow
450/500m³/h (IP54)
Rated Current
0.32/0.30 A
Power
64/71W
Motor Type
Electric Capacitance
Noise Level
62/64 dB
Exit Filter
FK9926.300
Dimension
320*320mm
Cut-out Size
292x298mm
