LEIPOLELEIPOLE PDB 160.03 Power Distribution Block Industrial 125A 800V LP-PDB-160.03
Enclosure accessoriesHover to zoom

LEIPOLE · Enclosure accessories

LEIPOLE PDB 160.03 Power Distribution Block Industrial 125A 800V

SKULP-PDB-160.03

LEIPOLE Enclosure accessories · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

IP RatingIP20
Rated Current (A)125
Rated Voltage (V)800
Cross SectionCu 2.5-50mm² / Al 6-50mm²
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure accessories

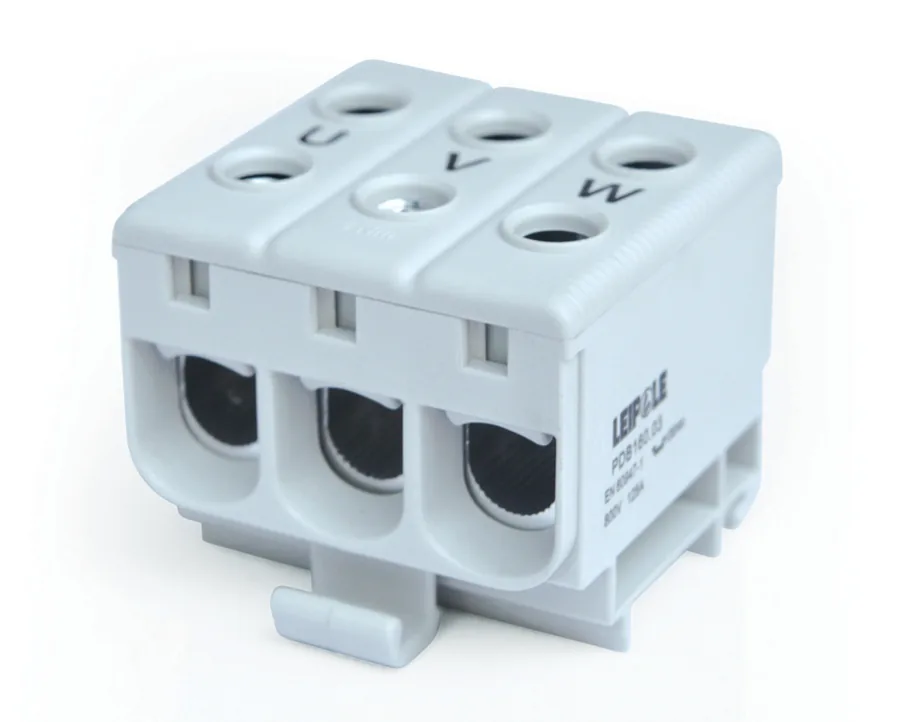

The LEIPOLE PDB 160.03 power distribution block is made of PA66 material with IP20 ingress protection. It conforms to IEC 60947-7-1 standards and supports copper and aluminum conductor connections for stable power distribution in electrical control systems. Key Features & Advantages PA66 housing for industrial electrical applications IP20 protection level for safe operation Works with Cu 2.5-50mm² and Al 6-50mm² conductors Standard screw connection for secure wiring DIN rail mountable for easy integration in electrical cabinets Applications This power distribution block delivers stable power connection and reliable wiring for ventilation systems, refrigeration units, industrial machinery, ….

Key data: ip rating IP20; rated current 125; rated voltage 800; cross section Cu 2.5-50mm² / Al 6-50mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

IP RatingIP20

Rated Current (A)125

Rated Voltage (V)800

Cross SectionCu 2.5-50mm² / Al 6-50mm²

ModelPDB 160.03

MaterialPA66

Order Number5012.141

Connection StandardIEN 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure accessories
Model
PDB 160.03
Product Type
PDB Terminal
Material
PA66
IP Rating
IP20
Order Number
5012.141
Connection Standard
IEN 60947-7-1
Rated Current (A)
125
Rated Voltage (V)
800
Cross Section
Cu 2.5-50mm² / Al 6-50mm²

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-PDB-160.03

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
