LEIPOLELEIPOLE LP80A20 3-Pole Connection Module for Busbar System, 80A, 1.5-16mm² LP-LP80A20
Busbar systemsHover to zoom

LEIPOLE · Busbar systems

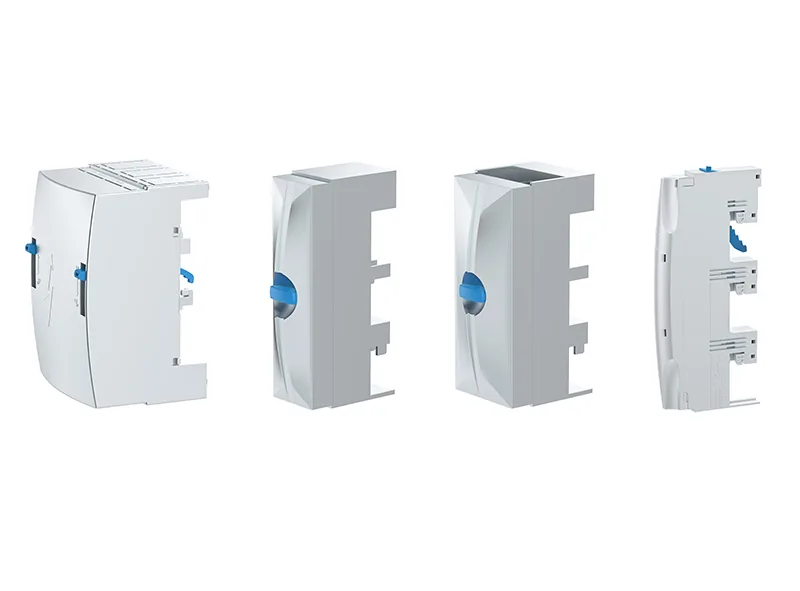

LEIPOLE LP80A20 3-Pole Connection Module for Busbar System, 80A, 1.5-16mm²

SKULP-LP80A20

LEIPOLE Busbar systems · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Wire cross-section1.5-16mm²
Size (W x H)20×200
Max. current80A
ModelLP80A20
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Busbar systems

The LP80A20 is a 3-pole connection module engineered for busbar systems measuring 12x5mm to 30x10mm. It comes with shock protection and spring terminals, supporting wire cross sections from 1.5mm² to 16mm² with a maximum rated current of 80A. The unit measures 20x200mm and is supplied in packs of 8 pieces. Key Features & Advantages 3-pole structure compatible with 12×5–30x10mm busbars Equipped with shock protection and spring terminals Supports 1.5–16mm² wire cross sections Rated current up to 80A Compact 20x200mm dimensions Pack of 8 units for industrial deployment Applications Industrial ventilation, refrigeration, and air conditioning systems Transportation equipment, electromobility ….

Key data: wire cross-section 1.5-16mm²; size 20×200; max. current 80A; model LP80A20.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Wire cross-section1.5-16mm²

Size (W x H)20×200

Max. current80A

ModelLP80A20

Order code5010.049

Packing8

Specifications

The technical details.

Download specification sheet
Category
Busbar System
Model
LP80A20
Order code
5010.049
Type
Connection module, 3-pole, for 12×5-30x10mm, shock-protected with spring terminals
Wire cross-section
1.5-16mm²
Size (W x H)
20×200
Max. current
80A
Packing
8

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP80A20

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
