LEIPOLELEIPOLE LP800A135 3-Pole Busbar Connection Terminal, 630A, for 20×5–30x10mm Busbars LP-LP800A135
Busbar systemsHover to zoom

LEIPOLE · Busbar systems

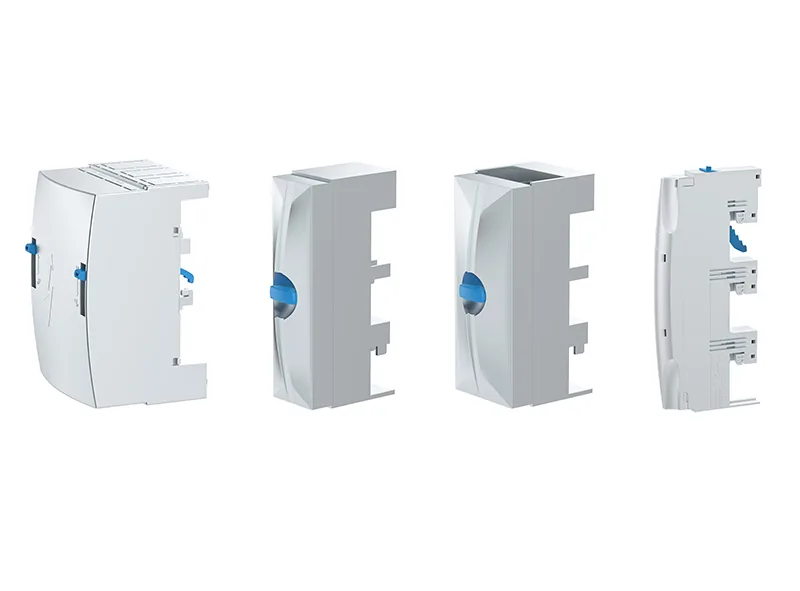

LEIPOLE LP800A135 3-Pole Busbar Connection Terminal, 630A, for 20×5–30x10mm Busbars

SKULP-LP800A135

LEIPOLE Busbar systems · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Size (W x H)135×200
Max. current630A
ModelLP800A135
Order code5010.054
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Busbar systems

LP800A135 is a 3-pole connection terminal plate designed for 20×5–30x10mm busbars, double-T and triple-T sections. It is supplied with a cover cap, supports copper and aluminum conductors, and offers a rated current of up to 630A. The unit measures 135x200mm. Key Features & Advantages 3-pole design with protective cover cap Compatible with 20×5–30x10mm flat busbars, double-T and triple-T profiles Supports copper and aluminum conductor connections Rated current up to 630A Dimensions: 135x200mm Stable mechanical and electrical connection Applications Industrial power distribution and machinery control systems Renewable energy stations, automation equipment, and electrical cabinets Data ….

Key data: size 135×200; max. current 630A; model LP800A135; order code 5010.054.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Size (W x H)135×200

Max. current630A

ModelLP800A135

Order code5010.054

ApplicationFor use up to max. 32×20 flat busbars

Packing1

NoteMinimum opening space connecting clamp

Specifications

The technical details.

Download specification sheet
Category
Busbar System
Model
LP800A135
Order code
5010.054
Type
Connecting terminal plate, 3-pole, for 20×5-30x10mm and double-T and triple-T section, with cover cap
Application
For use up to max. 32×20 flat busbars
Size (W x H)
135×200
Max. current
630A
Packing
1
Note
Minimum opening space connecting clamp
