LEIPOLELEIPOLE LP63A63 Busbar Adapter, 63A 10mm², Industrial Power Distribution LP-LP63A63
Busbar systemsHover to zoom

LEIPOLE · Busbar systems

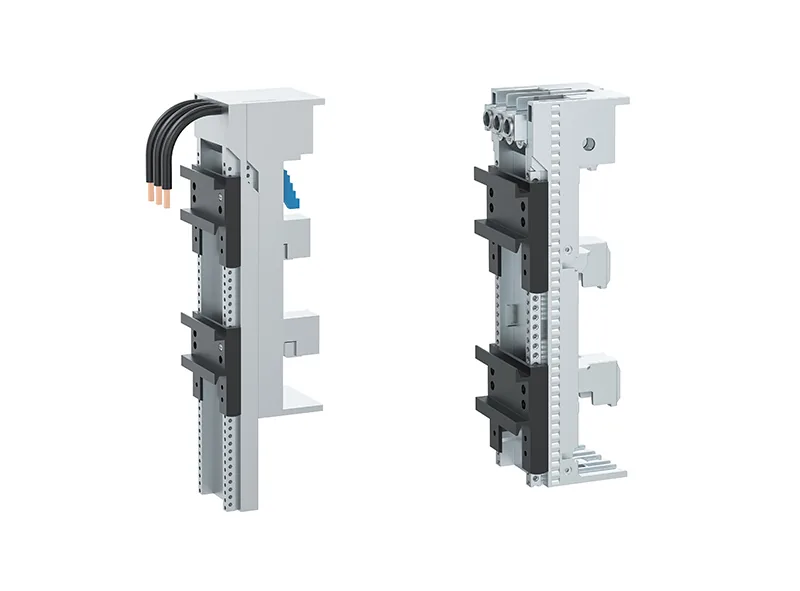

LEIPOLE LP63A63 Busbar Adapter, 63A 10mm², Industrial Power Distribution

SKULP-LP63A63

LEIPOLE Busbar systems · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Rated Current63A
ModelLP63A63
Mounting Rails2 mounting rails
Adapter Width63mm
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Busbar systems

LEIPOLE LP63A63 is a 63A busbar adapter belonging to the 60mm classic busbar system. It features standardized dimensions and robust construction for stable busbar connection and efficient power transmission in industrial electrical applications. Key Features & Advantages 63A busbar adapter equipped with AWG 8 10mm² leads Adapter width 63mm, length 200mm, fitted with 2 mounting rails Fully compatible with standard 60mm classic busbar systems Rugged structure ensures reliable current transmission and long service life Standardized dimensions support quick installation and replacement Typical Applications Industrial electrical cabinet busbar connection and branching Medium-to-high power ….

Key data: rated current 63A; model LP63A63; mounting rails 2 mounting rails; adapter width 63mm.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Rated Current63A

ModelLP63A63

Mounting Rails2 mounting rails

Adapter Width63mm

Adapter Length200mm

Packing1

Order Code5017.069

Specifications

The technical details.

Download specification sheet
Category
Busbar System
Model
LP63A63
Product Type
63A Busbar Adapter with leads (AWG 8 ≈ 10mm²)
Rated Current
63A
Mounting Rails
2 mounting rails
Adapter Width
63mm
Adapter Length
200mm
Packing
1
Order Code
5017.069

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP63A63

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
