LEIPOLELEIPOLE LP600F-1 Outdoor Enclosure Air Conditioner, IP55, 600W Cooling, RAL7035 LP-LP600F-1
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

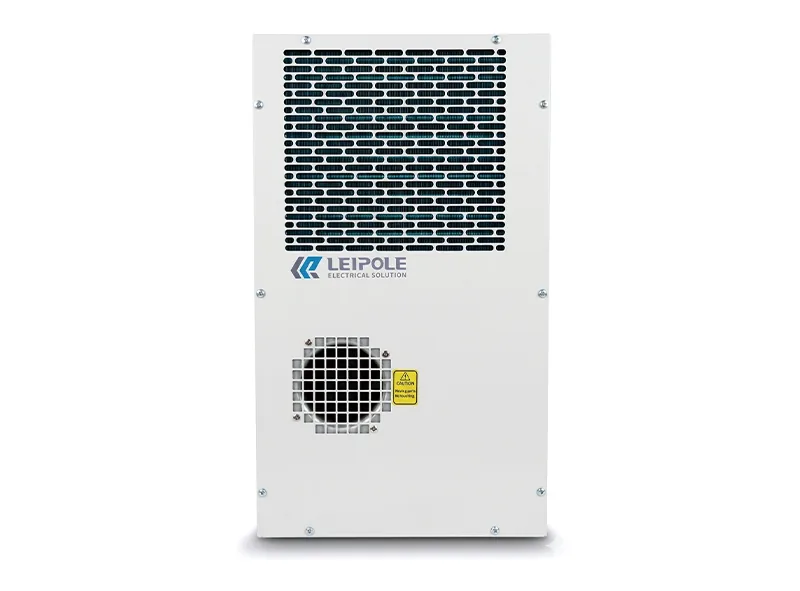

LEIPOLE LP600F-1 Outdoor Enclosure Air Conditioner, IP55, 600W Cooling, RAL7035

SKULP-LP600F-1

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
IP RatingIP55
Dimensions (W×D×H)352×175×582mm
Cooling Capacity (L35/L35)600W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE LP600F-1 is an outdoor-rated enclosure air conditioner built for external electrical cabinet cooling. It provides stable temperature control to protect electronic components in exposed industrial environments. Core Product Features IP55 ingress protection for outdoor installation and resistance to dust and water ingress. Uses R134a refrigerant for reliable and consistent cooling performance. Equipped with standard air filtration to maintain internal cleanliness and stable operation. Outdoor-grade powder coating in RAL7035 for corrosion and weather resistance. Built to operate within a wide temperature range for long-term outdoor use. Electrical & Operational Attributes This unit ….

Key data: certification CE, CQC; ip rating IP55; dimensions 352×175×582mm; cooling capacity 600W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

IP RatingIP55

Dimensions (W×D×H)352×175×582mm

Cooling Capacity (L35/L35)600W

Power Consumption (L35/L35)280W

Max Nominal Current / Starting Current2.5A / 5A

Power SupplyAC 230V±10% 50/60Hz

ModelLP600F-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
LP600F-1
Certification
CE, CQC
IP Rating
IP55
Dimensions (W×D×H)
352×175×582mm
Weight
23Kg
Cooling Capacity (L35/L35)
600W
Power Consumption (L35/L35)
280W
Max Nominal Current / Starting Current
2.5A / 5A
Operating Temperature Range
-40~55℃
Noise
60dB(A)
Refrigerant
R134a
Air Volume
180m³/h
Power Supply
AC 230V±10% 50/60Hz
Finish
Outdoor powder (RAL7035)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP600F-1

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
