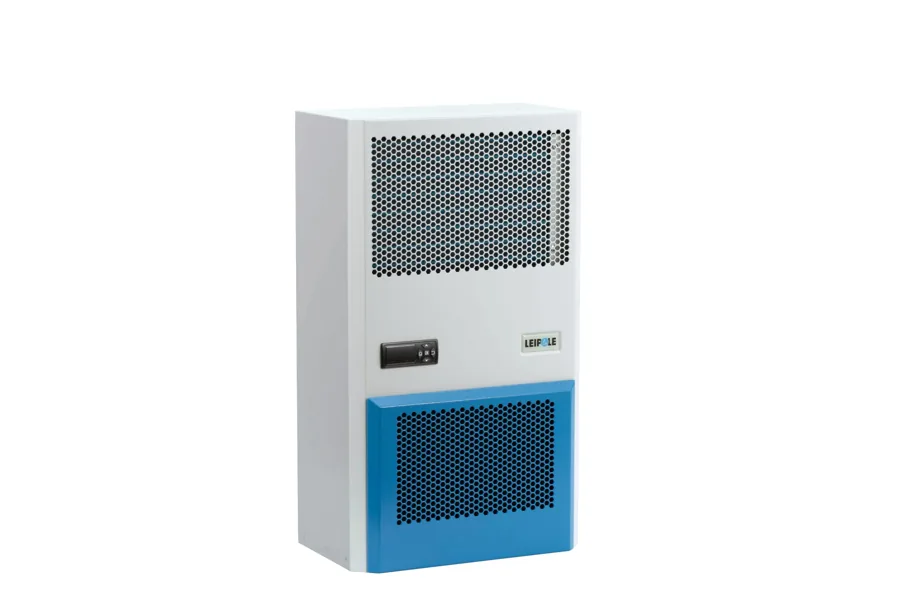

LEIPOLELP500N-1: 500W Enclosure Air Conditioner Industrial electric air conditioner LP-LP500N-1
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

LP500N-1: 500W Enclosure Air Conditioner Industrial electric air conditioner

SKULP-LP500N-1

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions315 x 175 x 546mm
Cooling Capacity500W, 1705BTU/h
Nominal voltage220V/50Hz/60Hz
Nominal current1.0A
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Key Functions of Enclosure Cooling Units Temperature Regulation : Enclosure AC units maintain a consistent temperature, preventing overheating and ensuring the reliable operation of sensitive equipment. Humidity Control : Many enclosure air conditioners also manage humidity levels, reducing the risk of condensation and corrosion. Dust and Contaminant Protection : By creating a sealed environment, these units prevent dust and debris from entering the enclosure, which can damage electronic components. Benefits of Enclosure Air Conditioners Enhanced Equipment Lifespan : By maintaining a stable temperature, enclosure AC units extend the life of electronic components. Energy Efficiency : Modern ….

Key data: dimensions 315 x 175 x 546mm; cooling capacity 500W, 1705BTU/h; nominal voltage 220V/50Hz/60Hz; nominal current 1.0A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions315 x 175 x 546mm

Cooling Capacity500W, 1705BTU/h

Nominal voltage220V/50Hz/60Hz

Nominal current1.0A

Dimensional315546175mm

Air flow120m³/h

IP ratingInternal IP54/External IP34

ModelLP500N-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
LP500N-1
Part Number
LP500N-1
Order Code
2027.001
Dimensions
315 x 175 x 546mm
Cooling Capacity
500W, 1705BTU/h
Nominal voltage
220V/50Hz/60Hz
Nominal capacity
(L35/L35) 210W, (L35/L55) 260W
Nominal current
1.0A
Dimensional
315546175mm
Installation
Screw mounting
Operating temperature
-10℃~+55℃
Setpoint temperature
+28 °C~+40 °C
Air flow
120m³/h
IP rating
Internal IP54/External IP34
Refrigerant Type
R134a
Noise level
60dB
Finish
Power coated RAL7035
Weight
15Kg
Filter
Yes

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP500N-1

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
