LEIPOLELEIPOLE LP5000F-1 Outdoor Enclosure Air Conditioner, IP55, 5000W Cooling, RAL7035 LP-LP5000F-1
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

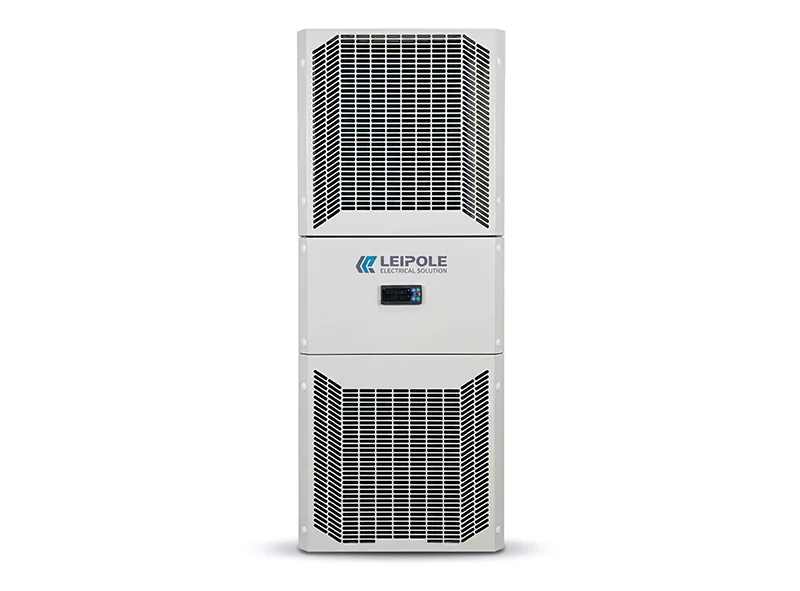

LEIPOLE LP5000F-1 Outdoor Enclosure Air Conditioner, IP55, 5000W Cooling, RAL7035

SKULP-LP5000F-1

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
IP RatingIP55
Dimensions (W×D×H)650×300×1350mm
Cooling Capacity (L35/L35)5000W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE LP5000F-1 is a high-capacity outdoor-rated enclosure air conditioner designed for large electrical cabinets, outdoor equipment housings, and heavy-duty industrial applications. It delivers powerful and stable cooling to maintain ideal internal temperatures, effectively protecting electronic components from overheating in harsh outdoor and industrial environments. Core Product Features IP55 ingress protection ensures excellent dust resistance and waterproof performance for reliable outdoor installation. Uses environmentally friendly R134a refrigerant for efficient and stable cooling output. Equipped with high-efficiency air filters to keep the interior clean and extend service life. ….

Key data: certification CE, CQC; ip rating IP55; dimensions 650×300×1350mm; cooling capacity 5000W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

IP RatingIP55

Dimensions (W×D×H)650×300×1350mm

Cooling Capacity (L35/L35)5000W

Power Consumption (L35/L35)1600W

Max Nominal Current / Starting Current11A / 36A

Power SupplyAC 230V±10% 50/60Hz

ModelLP5000F-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
LP5000F-1
Certification
CE, CQC
IP Rating
IP55
Dimensions (W×D×H)
650×300×1350mm
Weight
70Kg
Cooling Capacity (L35/L35)
5000W
Power Consumption (L35/L35)
1600W
Max Nominal Current / Starting Current
11A / 36A
Operating Temperature Range
-40~55℃
Noise
70dB(A)
Refrigerant
R134a
Air Volume
700m³/h
Power Supply
AC 230V±10% 50/60Hz
Finish
Outdoor powder (RAL7035)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP5000F-1

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
