LEIPOLELEIPOLE LP2000F-1 Outdoor Enclosure Air Conditioner, IP55, 2000W Cooling, RAL7035 LP-LP2000F-1
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

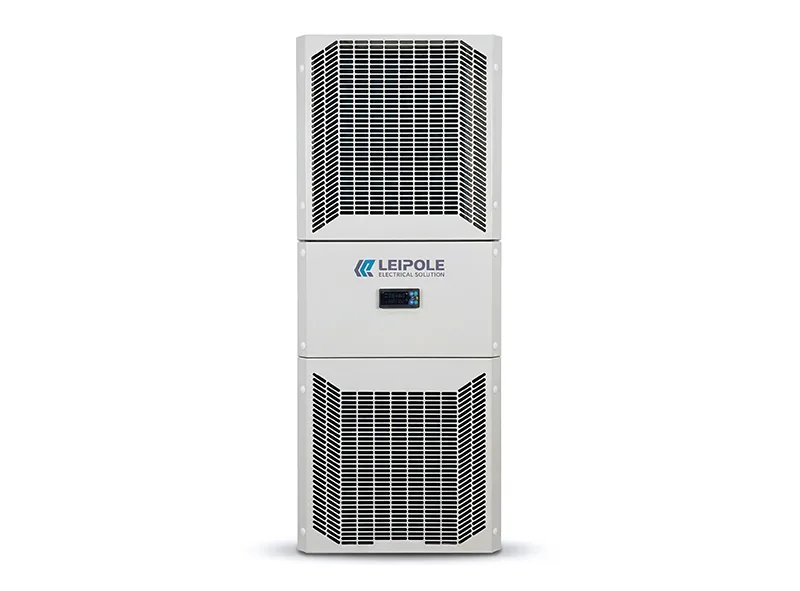

LEIPOLE LP2000F-1 Outdoor Enclosure Air Conditioner, IP55, 2000W Cooling, RAL7035

SKULP-LP2000F-1

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
IP RatingIP55
Dimensions (W×D×H)482×210×784mm
Cooling Capacity (L35/L35)2000W
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE LP2000F-1 is an outdoor-rated enclosure air conditioner built for cooling large electrical cabinets and outdoor equipment housings. It maintains stable internal temperatures to protect electronic components in exposed outdoor and industrial environments. Core Product Features IP55 ingress protection for outdoor installation and resistance to dust and water ingress. Uses R134a refrigerant for consistent and reliable cooling output. Equipped with replaceable air filters to maintain interior cleanliness and stable performance. Outdoor-grade powder coating in RAL7035 for corrosion resistance and weather durability. Built to operate across a wide temperature range for long-term outdoor ….

Key data: certification CE, CQC; ip rating IP55; dimensions 482×210×784mm; cooling capacity 2000W.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

IP RatingIP55

Dimensions (W×D×H)482×210×784mm

Cooling Capacity (L35/L35)2000W

Power Consumption (L35/L35)750W

Max Nominal Current / Starting Current5A / 15.6A

Power SupplyAC 230V±10% 50/60Hz

ModelLP2000F-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
LP2000F-1
Certification
CE, CQC
IP Rating
IP55
Dimensions (W×D×H)
482×210×784mm
Weight
32Kg
Cooling Capacity (L35/L35)
2000W
Power Consumption (L35/L35)
750W
Max Nominal Current / Starting Current
5A / 15.6A
Operating Temperature Range
-40~55℃
Noise
65dB(A)
Refrigerant
R134a
Air Volume
500m³/h
Power Supply
AC 230V±10% 50/60Hz
Finish
Outdoor powder (RAL7035)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-LP2000F-1

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.

View source
