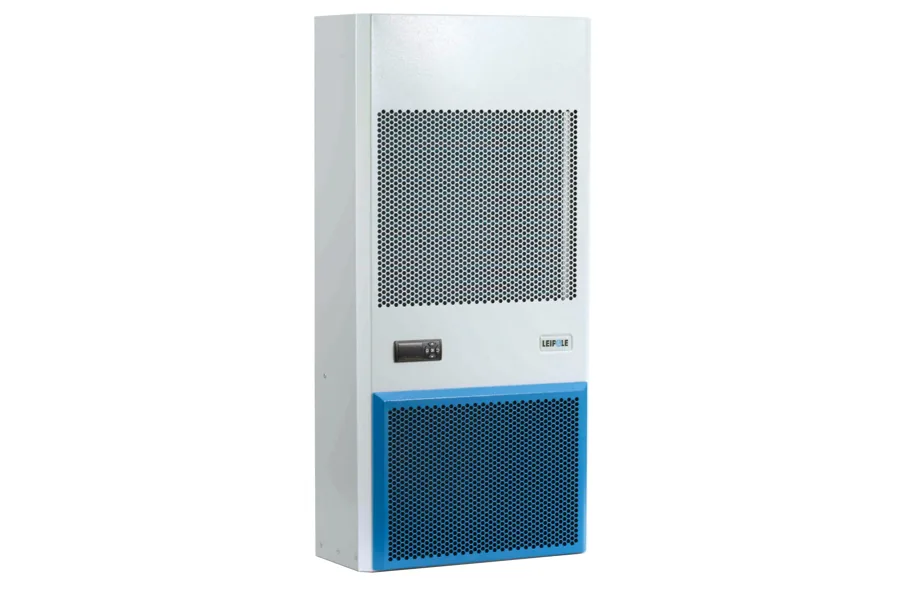

LEIPOLELP1000N-1: 1000W High-Capacity Enclosure Cooling Unit for Data Centers LP-LP1000N-1
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

LP1000N-1: 1000W High-Capacity Enclosure Cooling Unit for Data Centers

SKULP-LP1000N-1

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimensions381 x 163 x 793mm
Cooling Capacity1000W, 3412BTU/h
Nominal voltage220V/50Hz/60Hz
Nominal current2.0A
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Key Functions of Enclosure Cooling Units Temperature Regulation : Enclosure AC units maintain a consistent temperature, preventing overheating and ensuring the reliable operation of sensitive equipment. Humidity Control : Many enclosure air conditioners also manage humidity levels, reducing the risk of condensation and corrosion. Dust and Contaminant Protection : By creating a sealed environment, these units prevent dust and debris from entering the enclosure, which can damage electronic components. Benefits of Enclosure Air Conditioners Enhanced Equipment Lifespan : By maintaining a stable temperature, enclosure AC units extend the life of electronic components. Energy Efficiency : Modern ….

Key data: dimensions 381 x 163 x 793mm; cooling capacity 1000W, 3412BTU/h; nominal voltage 220V/50Hz/60Hz; nominal current 2.0A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimensions381 x 163 x 793mm

Cooling Capacity1000W, 3412BTU/h

Nominal voltage220V/50Hz/60Hz

Nominal current2.0A

Dimensional381*793*163mm

Air flow440m³/h

IP ratingInternal IP54/External IP34

ModelLP1000N-1

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
LP1000N-1
Part Number
LP1000N-1
Order Code
2027.002
Dimensions
381 x 163 x 793mm
Cooling Capacity
1000W, 3412BTU/h
Nominal voltage
220V/50Hz/60Hz
Nominal capacity
(L35/L35) 440W, (L35/L55) 600W
Nominal current
2.0A
Dimensional
381*793*163mm
Installation
Screw mounting
Operating temperature
-10℃~+55℃
Setpoint temperature
+28 °C~+40 °C
Air flow
440m³/h
IP rating
Internal IP54/External IP34
Refrigerant Type
R134a
Noise level
65dB
Finish
Power coated RAL7035
Weight
30Kg
Filter
Yes
