LEIPOLELow Profile Fan Filter 195m³/h (115CFM)Cabinet | FKL5523.024 LP-FKL5523.024
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

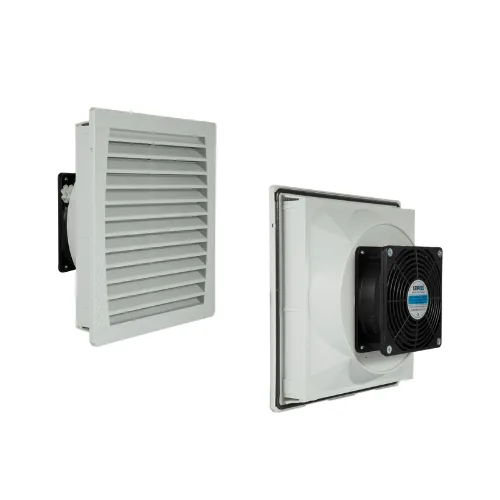

Low Profile Fan Filter 195m³/h (115CFM)Cabinet | FKL5523.024

SKULP-FKL5523.024

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

ColorRAL7035/RAL7032
Rate Voltage24V DC
Air Flow195 m³/h (IP54)
Rated Current0.40 A
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

Comprehensive Fan Filter for Precision Ventilation and Filtration Applications Advanced FFU (Fan Filter Unit) systems combining motor, blower, and multi-stage filtration for optimal air purification ventilation Professional DC 12V/24V/48V and AC 115V/230V ventilation fans designed for control panels and electrical enclosures with efficient cooling performance Specialized box fan filter assemblies for industrial and agricultural air filtration needs Complete ventilation solutions for sensitive equipment including medical devices, OEM machinery, and laboratory environments Customizable control panel ventilation fans with various mounting options and airflow configurations Available airflow ….

Key data: color RAL7035/RAL7032; rate voltage 24V DC; air flow 195 m³/h (IP54); rated current 0.40 A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

ColorRAL7035/RAL7032

Rate Voltage24V DC

Air Flow195 m³/h (IP54)

Rated Current0.40 A

Power9.60 W

Dimension250x250mm

Cut-out Size224mmx224mm

ModelFKL5523.024

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
FKL5523.024
Part Number
FKL5523.024
Color
RAL7035/RAL7032
Order Code
2025.007/2025.031
Fan Model
F2E-120B-24
Rate Voltage
24V DC
Air Flow
195 m³/h (IP54)
Rated Current
0.40 A
Power
9.60 W
Motor Type
DC Motor
Noise Level
50/52 dB
Exit Filter
FKL5525.300
Dimension
250x250mm
Cut-out Size
224mmx224mm

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-FKL5523.024

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
