LEIPOLE JUSLKG 10 DIN Rail Heavy-Duty Grounding Terminal Block

Name: LEIPOLE JUSLKG 10 DIN Rail Heavy-Duty Grounding Terminal Block
Brand: LEIPOLE
SKU: LP-JUSLKG-10

SKULP-JUSLKG-10

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB10

SizeT10.2×H47×W42.5

Rated Current76A

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

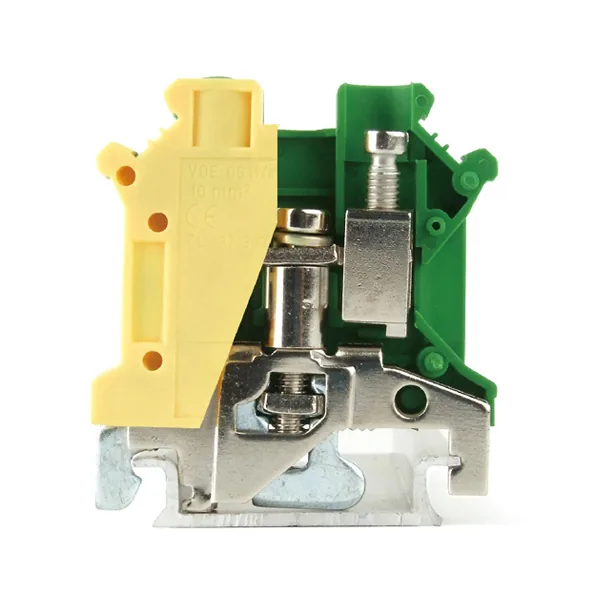

LEIPOLE JUSLKG 10 is a heavy-duty DIN rail grounding terminal block designed for large cross-section wire protective earthing. Equipped with an enhanced screw clamp structure and high-conductivity conductive parts, it ensures low-resistance, stable grounding connection for heavy-duty circuits. The standard green-yellow insulating housing complies with international grounding safety standards, featuring excellent flame retardancy, high temperature resistance and mechanical impact resistance. Modular DIN rail mounting allows quick installation and flexible combination, ideal for heavy machinery, power distribution cabinets and high-power industrial electrical grounding systems. Key Features & ….

Key data: certification CE, CQC; zack strip ZB10; size T10.2×H47×W42.5; rated current 76A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB10

SizeT10.2×H47×W42.5

Rated Current76A

Cross Section0.5~16mm²

ModelJUSLKG 10

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-2
