LEIPOLE JUKK5-PE Ground Terminal Block Industrial Earthing 34A 0.2-4mm²

Name: LEIPOLE JUKK5-PE Ground Terminal Block Industrial Earthing 34A 0.2-4mm²
Brand: LEIPOLE
SKU: LP-JUKK5-PE

SKULP-JUKK5-PE

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H63×W57

Rated Current34A

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

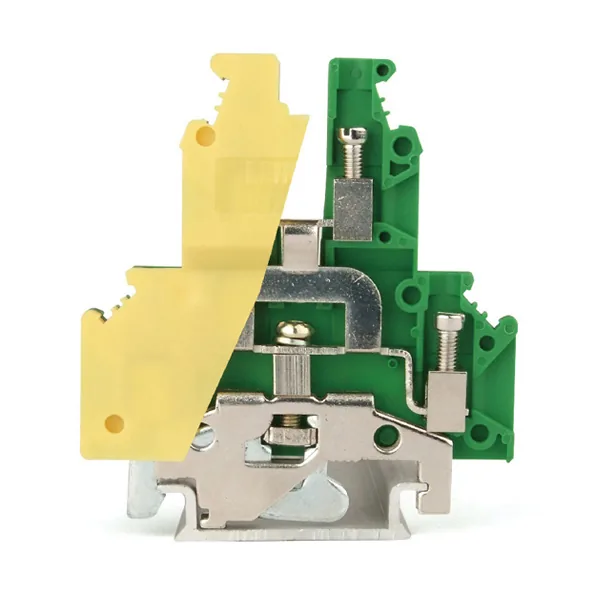

LEIPOLE JUKK5-PE is a DIN rail mounted ground terminal block developed for industrial power distribution and protective earthing. It complies with IEC 60947-7-2 connection standards and adopts screw connection structure to ensure stable and reliable earthing connection. The product possesses UL 94 V0 flammability class, suitable for long-term operation in industrial electrical enclosures and control systems. Key Features & Advantages Complies with IEC 60947-7-2 international industrial connection standards UL 94 V0 flame retardant material for safe industrial use Screw connection type provides stable wire fixation and conduction Equipped with ZB6 Zack strip for standardized wiring ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H63×W57; rated current 34A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H63×W57

Rated Current34A

Cross Section0.2~4mm²

ModelJUKK5-PE

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-2
