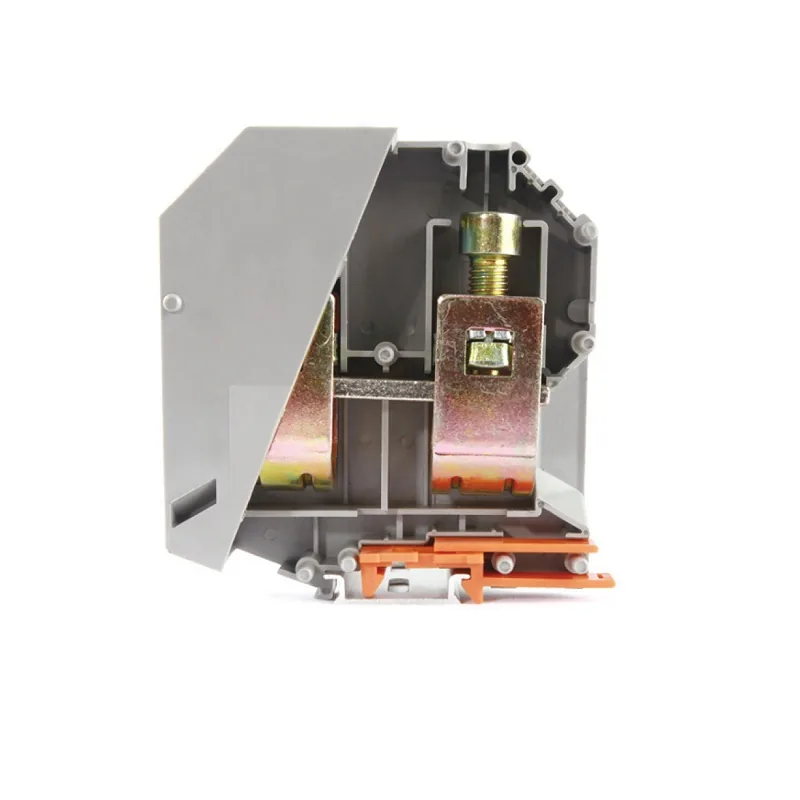

LEIPOLELEIPOLE JUKH 150 / JUKH 150-BU DIN Rail Extra Large Current Screw Terminal Block LP-JUKH-150/JUKH-150-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

LEIPOLE JUKH 150 / JUKH 150-BU DIN Rail Extra Large Current Screw Terminal Block

SKULP-JUKH-150/JUKH-150-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB10
SizeT31.5×H111.2×W100.1
Rated Current/Rated Voltage309A/1000V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JUKH 150 and JUKH 150-BU are extra large cross-section heavy-duty terminal blocks, customized for extreme high-current and heavy-load industrial conditions. Equipped with super thick high-conductivity copper conductors and enhanced screw clamp structure, they securely fasten large cables with low energy loss and stable current transmission. The high-performance flame-retardant insulated housing delivers superior high-temperature resistance, insulation protection and mechanical toughness. Grey and blue color variants realize clear circuit classification, perfectly applicable for large power distribution stations, heavy industry and high-power equipment systems. Key Features & ….

Key data: certification CE, CQC; zack strip ZB10; size T31.5×H111.2×W100.1; rated current/rated voltage 309A/1000V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB10

SizeT31.5×H111.2×W100.1

Rated Current/Rated Voltage309A/1000V

Cross Section35~150mm²

ModelJUKH 150/JUKH 150-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JUKH 150/JUKH 150-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB10
Order Number
1010.013/1010.027
Size
T31.5×H111.2×W100.1
Rated Current/Rated Voltage
309A/1000V
Cross Section
35~150mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JUKH-150/JUKH-150-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
