LEIPOLELEIPOLE JUK 5-MTK-P/P Test Disconnect Terminal Block Industrial Wiring 16A 0.2-4mm² LP-JUK-5-MTK-P/P
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

LEIPOLE JUK 5-MTK-P/P Test Disconnect Terminal Block Industrial Wiring 16A 0.2-4mm²

SKULP-JUK-5-MTK-P/P

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB6
SizeT6.2×H62×W51
Rated Current/Rated Voltage16A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

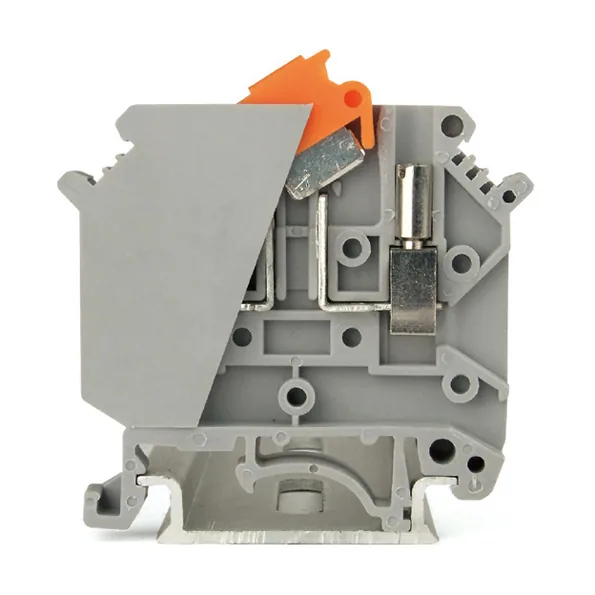

LEIPOLE JUK 5-MTK-P/P is a test disconnect terminal block designed for industrial electrical control and power distribution systems. It complies with IEC 60947-7-1 connection standards and uses screw connection to deliver stable wiring and reliable circuit test and disconnection functions. The product features UL 94 V0 flammability class for safe operation in electrical enclosures and control panels. Key Features & Advantages Complies with IEC 60947-7-1 international industrial connection standards UL 94 V0 flame-retardant material ensures electrical safety Screw connection structure provides firm wire clamping and stable conductivity Equipped with ZB6 Zack strip for standardized and ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H62×W51; rated current/rated voltage 16A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H62×W51

Rated Current/Rated Voltage16A/800V

Cross Section0.2~4mm²

ModelJUK 5-MTK-P/P

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JUK 5-MTK-P/P
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB6
Order Number
1010.062
Size
T6.2×H62×W51
Rated Current/Rated Voltage
16A/800V
Cross Section
0.2~4mm²
Connection Type
screw connection
Din Rail Type
NS 35/7.5, NS 35/15, NS 32

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JUK-5-MTK-P/P

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
