LEIPOLELEIPOLE JUK 5-HESI Fuse Terminal Block Industrial DIN Rail Wiring LP-JUK-5-HESI
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

LEIPOLE JUK 5-HESI Fuse Terminal Block Industrial DIN Rail Wiring

SKULP-JUK-5-HESI

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB8
SizeT8.2×H56.5×W72.5
Rated Current/Rated Voltage6.3A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

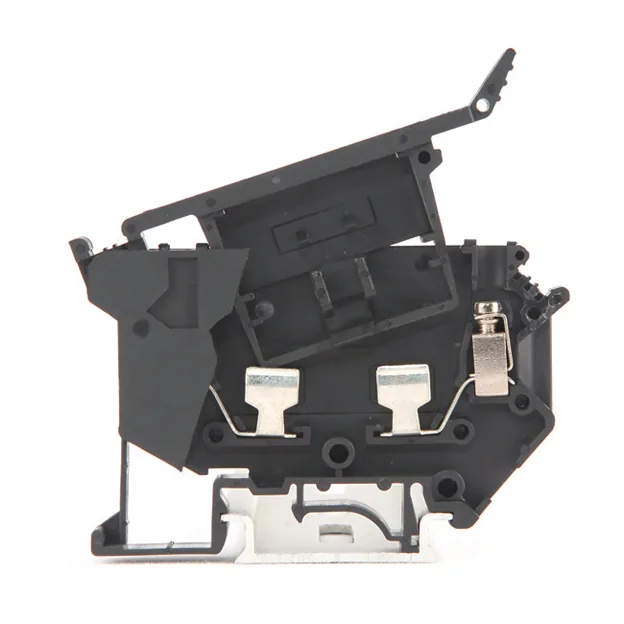

LEIPOLE JUK 5-HESI is a DIN rail mounted fuse terminal block with screw connection structure. It integrates wiring and fuse protection functions, applied to industrial low-voltage control circuits. Made of standard insulating and conductive materials, it provides reliable overcurrent protection and stable electrical connection for electrical cabinets and automation systems. Key Features & Advantages Integrated fuse design for circuit overcurrent protection Durable screw clamping connection for secure wire installation High flame retardant insulated housing for operational safety Standard DIN rail mounting for quick assembly and replacement Modular structure for flexible combination in ….

Key data: certification CE, CQC; zack strip ZB8; size T8.2×H56.5×W72.5; rated current/rated voltage 6.3A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB8

SizeT8.2×H56.5×W72.5

Rated Current/Rated Voltage6.3A/800V

Cross Section0.2~4mm²

ModelJUK 5-HESI

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JUK 5-HESI
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB8
Order Number
1010.063
Size
T8.2×H56.5×W72.5
Rated Current/Rated Voltage
6.3A/800V
Cross Section
0.2~4mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JUK-5-HESI

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
