LEIPOLELEIPOLE JUK 3N / JUK 3N-BU DIN Rail Screw Terminal Block, Industrial Wiring Connector LP-JUK-3N/JUK-3N-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

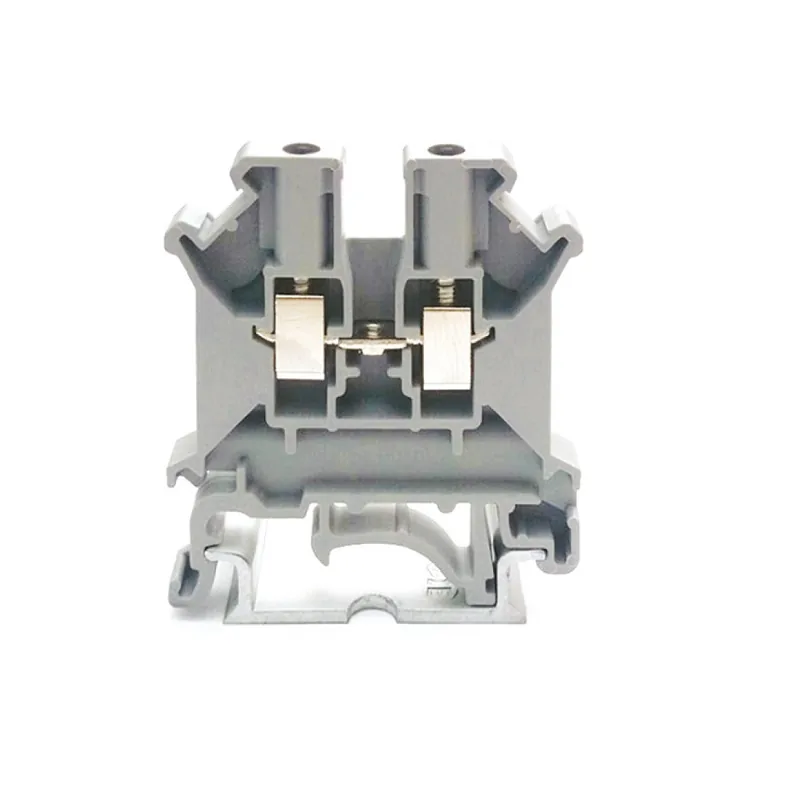

LEIPOLE JUK 3N / JUK 3N-BU DIN Rail Screw Terminal Block, Industrial Wiring Connector

SKULP-JUK-3N/JUK-3N-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB5
SizeT5.2×H47×W42.5
Rated Current/Rated Voltage32A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JUK 3N and JUK 3N-BU are standard modular screw terminal blocks, designed for low-voltage circuit connection in industrial control cabinets and distribution boxes. With stable screw clamp connection and high flame-retardant housing, they provide safe insulation, reliable conductivity and long service life. Different color options realize classified wiring, meeting standardized electrical wiring requirements for various industrial scenarios. Key Features & Advantages Precision screw clamp structure, firm wiring, anti-loosening and anti-vibration. High-quality flame-retardant insulating material, high temperature resistance and electrical safety. Universal DIN rail installation, easy ….

Key data: certification CE, CQC; zack strip ZB5; size T5.2×H47×W42.5; rated current/rated voltage 32A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB5

SizeT5.2×H47×W42.5

Rated Current/Rated Voltage32A/800V

Cross Section0.2~4mm²

ModelJUK 3N/JUK 3N-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JUK 3N/JUK 3N-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB5
Order Number
1010.003/1010.017
Size
T5.2×H47×W42.5
Rated Current/Rated Voltage
32A/800V
Cross Section
0.2~4mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JUK-3N/JUK-3N-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
