LEIPOLELEIPOLE JUK 2.5B / JUK 2.5B-BU DIN Rail Screw Terminal Block, 32A 800V, PA66, UL94 V0 LP-JUK-2.5B/JUK-2.5B-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

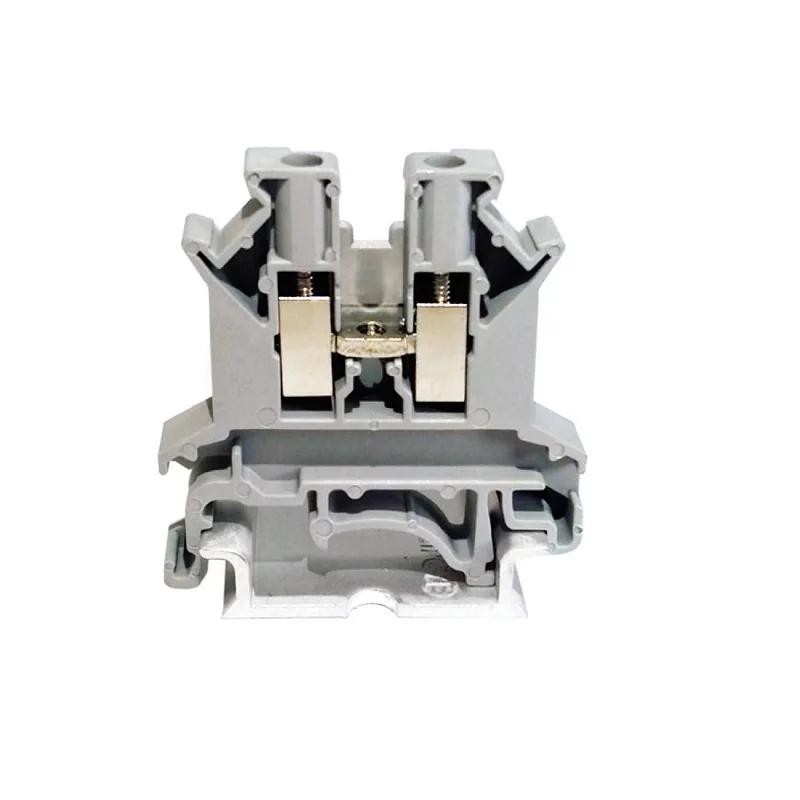

LEIPOLE JUK 2.5B / JUK 2.5B-BU DIN Rail Screw Terminal Block, 32A 800V, PA66, UL94 V0

SKULP-JUK-2.5B/JUK-2.5B-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB6
SizeT6.2×H42×W42.5
Rated Current/Rated Voltage32A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JUK 2.5B and JUK 2.5B-BU are standard modular screw terminal blocks, widely applied in industrial control cabinets and power distribution boxes. Adopting screw clamping connection, they achieve stable wire connection, good insulation performance and convenient installation. Different colors support circuit classification wiring, meeting low-voltage circuit connection demands in various industrial scenarios. Key Features & Advantages Stable screw clamp connection, anti-loosening and anti-vibration for long-term operation. Flame-retardant insulating housing, high temperature resistance and electrical safety. Standard DIN rail installation, easy to assemble, disassemble and expand. ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H42×W42.5; rated current/rated voltage 32A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H42×W42.5

Rated Current/Rated Voltage32A/800V

Cross Section0.2~4mm²

ModelJUK 2.5B/JUK 2.5B-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JUK 2.5B/JUK 2.5B-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB6
Order Number
1010.001/1010.015
Size
T6.2×H42×W42.5
Rated Current/Rated Voltage
32A/800V
Cross Section
0.2~4mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JUK-2.5B/JUK-2.5B-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
