LEIPOLE JUISLKG 16 Ground Terminal Block Industrial Earthing 101A 2.5-25mm²

Name: LEIPOLE JUISLKG 16 Ground Terminal Block Industrial Earthing 101A 2.5-25mm²
Brand: LEIPOLE
SKU: LP-JUISLKG-16

SKULP-JUISLKG-16

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB10

SizeT12.2×H47×W42.5

Rated Current101A

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

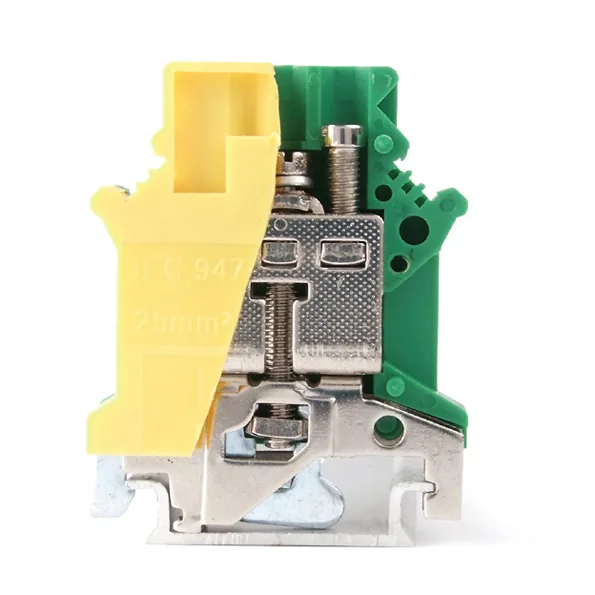

LEIPOLE JUISLKG 16 is a DIN rail mounted ground terminal block built for industrial power distribution and protective earthing. It conforms to IEC 60947-7-2 connection standards and uses a screw connection structure to ensure stable and secure earthing performance. The product carries UL 94 V0 flammability class, suitable for consistent operation in industrial electrical enclosures and distribution systems. Key Features & Advantages Complies with IEC 60947-7-2 international industrial connection standards UL 94 V0 flame-retardant material supports safe long-term use Screw connection design delivers reliable wire clamping and electrical conduction Equipped with ZB10 Zack strip for ….

Key data: certification CE, CQC; zack strip ZB10; size T12.2×H47×W42.5; rated current 101A.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB10

SizeT12.2×H47×W42.5

Rated Current101A

Cross Section2.5~25mm²

ModelJUISLKG 16

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-2
