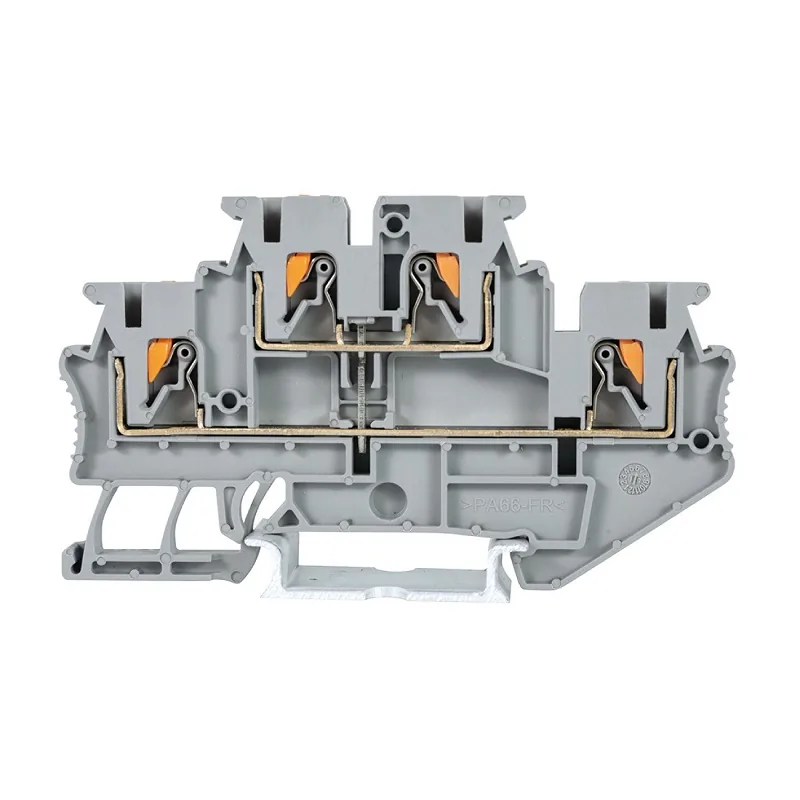

LEIPOLELEIPOLE JPTTB 4-PV/JPTTB 4-PV-BU Feed-through Terminal Block 32A 800V Industrial Wiring LP-JPTTB-4-PV/JPTTB-4-PV-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

LEIPOLE JPTTB 4-PV/JPTTB 4-PV-BU Feed-through Terminal Block 32A 800V Industrial Wiring

SKULP-JPTTB-4-PV/JPTTB-4-PV-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB6
SizeT6.2×H78.7×W48.7
Rated Current/Rated Voltage32A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JPTTB 4-PV and JPTTB 4-PV-BU are double-level 4-conductor screw-type feed-through terminal blocks for standard DIN rail mounting. Designed for industrial control, power distribution and PV-related wiring applications, they provide stable multi-wire connections with reliable screw clamping. Insulation and conductive parts meet industrial standards for safe and consistent performance in industrial working environments. Key Features & Advantages Double-level 4-conductor design for high-density wiring Screw connection for stable and reliable wiring UL 94 V0 flame-retardant housing for operational safety Compliant with IEC 60947-7-1 international standards Compatible with NS 35/7.5, NS ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H78.7×W48.7; rated current/rated voltage 32A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H78.7×W48.7

Rated Current/Rated Voltage32A/800V

Cross Section0.5~6mm²

ModelJPTTB 4-PV/JPTTB 4-PV-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JPTTB 4-PV/JPTTB 4-PV-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB6
Order Number
1012.084/1012.085
Size
T6.2×H78.7×W48.7
Rated Current/Rated Voltage
32A/800V
Cross Section
0.5~6mm²
Din Rail Type
NS 35/7.5, NS 35/15, NS 32

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JPTTB-4-PV/JPTTB-4-PV-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
