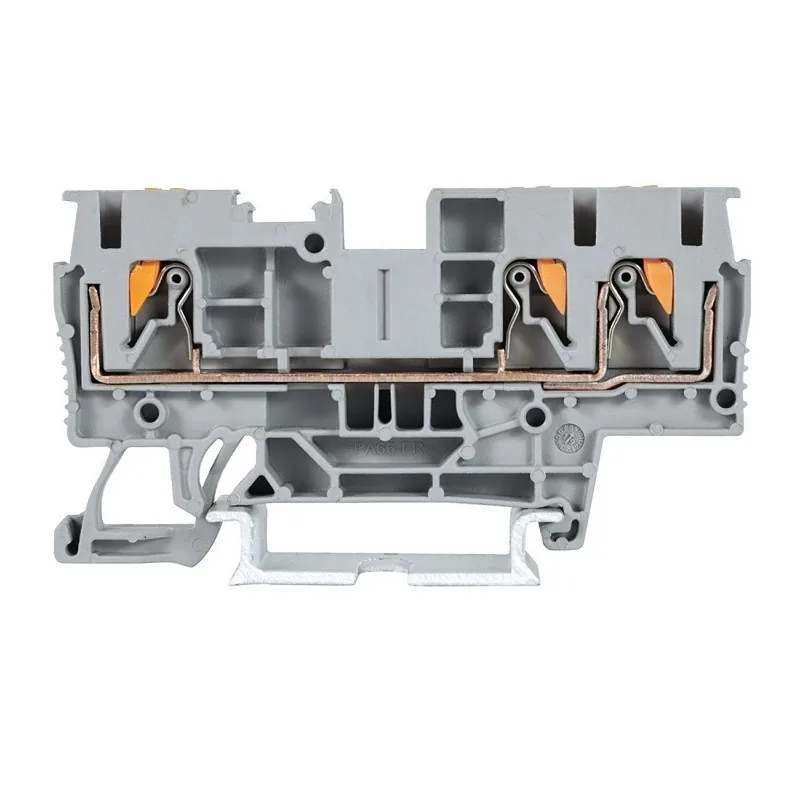

LEIPOLELEIPOLE JPT 4-TW/JPT 4-TW-BU Feed-through Terminal Block 36A 800V Industrial Wiring LP-JPT-4-TW/JPT-4-TW-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

LEIPOLE JPT 4-TW/JPT 4-TW-BU Feed-through Terminal Block 36A 800V Industrial Wiring

SKULP-JPT-4-TW/JPT-4-TW-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB6
SizeT6.2×H68.4×W38
Rated Current/Rated Voltage36A/800V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JPT 4-TW and JPT 4-TW-BU are 3-conductor screw-type feed-through terminal blocks for standard DIN rail mounting. Designed for industrial control and low-voltage distribution wiring, they provide stable multi-wire connections with reliable screw clamping. Insulation and conductive parts meet industrial standards for safe and consistent performance in industrial working environments. Key Features & Advantages 3-conductor design for multi-wire connection Screw connection for stable and reliable wiring UL 94 V0 flame-retardant housing for operational safety Compliant with IEC 60947-7-1 international standards Compatible with NS 35/7.5, NS 35/15 and NS 32 DIN rails Compact structure for ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H68.4×W38; rated current/rated voltage 36A/800V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H68.4×W38

Rated Current/Rated Voltage36A/800V

Cross Section0.5~6mm²

ModelJPT 4-TW/JPT 4-TW-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JPT 4-TW/JPT 4-TW-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB6
Order Number
1012.076/1012.077
Size
T6.2×H68.4×W38
Rated Current/Rated Voltage
36A/800V
Cross Section
0.5~6mm²
Din Rail Type
NS 35/7.5, NS 35/15, NS 32

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JPT-4-TW/JPT-4-TW-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
