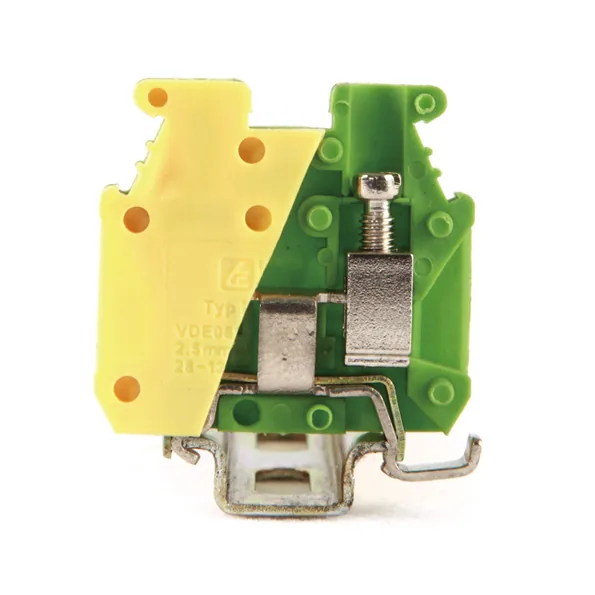

LEIPOLE JMBK 5/E-Z-PE PE Grounding Terminal Block

Name: LEIPOLE JMBK 5/E-Z-PE PE Grounding Terminal Block
Brand: LEIPOLE
SKU: LP-JMBK-5/E-Z-PE

SKULP-JMBK-5/E-Z-PE

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H32×W28

Cross Section0.2~6mm²

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JMBK 5/E-Z-PE is a dedicated protective earth terminal block with DIN rail installation and screw connection structure. It is specially used for equipment grounding and safety protection in industrial low-voltage systems, providing reliable earthing connection to protect electrical equipment and operators. Key Features & Advantages Professional PE grounding structure for safe and stable earthing Screw clamping design for firm wire connection Flame retardant insulating material for industrial environment adaptability Standard DIN rail mounting, compatible with cabinet modular wiring Unified series design, matching with other JMBK series terminal blocks Typical Applications Industrial ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H32×W28; cross section 0.2~6mm².

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H32×W28

Cross Section0.2~6mm²

ModelJMBK 5/E-Z-PE

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Order Number1010.073
