LEIPOLE JMBK 5/E-Z Feed-through Terminal Block

Name: LEIPOLE JMBK 5/E-Z Feed-through Terminal Block
Brand: LEIPOLE
SKU: LP-JMBK-5/E-Z

SKULP-JMBK-5/E-Z

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H32×W28

Rated Current/Rated Voltage32A/500V

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

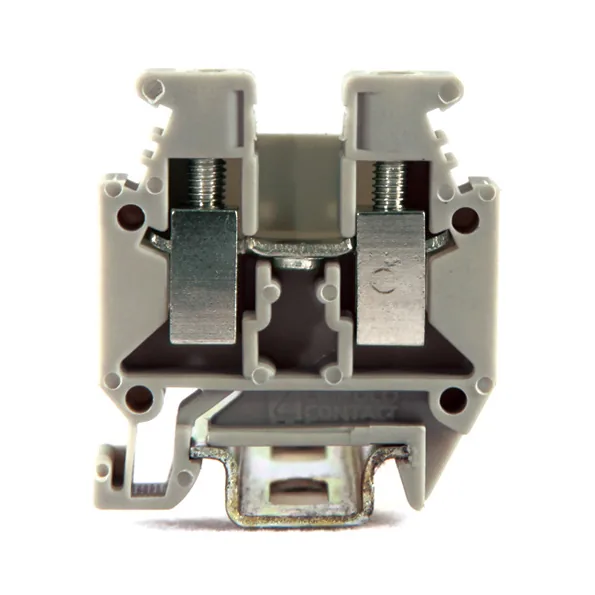

LEIPOLE JMBK 5/E-Z is a standard DIN rail mounting feed-through terminal block with screw clamping connection. It is applicable to industrial low-voltage control circuits and power distribution wiring. With qualified insulating housing and high-quality conductive components, it ensures stable transmission and safe operation in conventional industrial environments. Key Features & Advantages Practical screw clamping structure for firm wire fixation High flame retardant insulation material for electrical safety Standard DIN rail design for quick installation and disassembly Compact modular structure for neat cabinet wiring Stable conductive performance for long-term continuous work Typical ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H32×W28; rated current/rated voltage 32A/500V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H32×W28

Rated Current/Rated Voltage32A/500V

Cross Section0.2~6mm²

ModelJMBK 5/E-Z

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1
