LEIPOLELEIPOLE JMBK 3/E-Z / JMBK 3/E-Z-BU Industrial Terminal Block LP-JMBK-3/E-Z-/-JMBK-3/E-Z-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

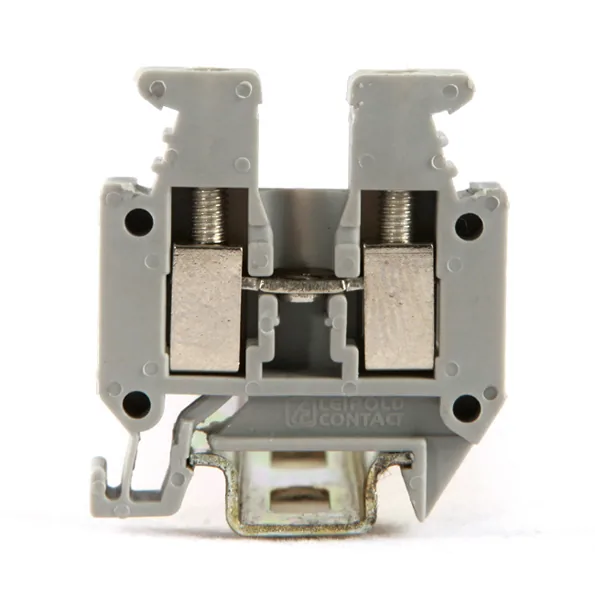

LEIPOLE JMBK 3/E-Z / JMBK 3/E-Z-BU Industrial Terminal Block

SKULP-JMBK-3/E-Z-/-JMBK-3/E-Z-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB5
SizeT5.2×H32×W28
Rated Current/Rated Voltage24A/500V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JMBK 3/E-Z and JMBK 3/E-Z-BU are standard DIN rail mounting terminal blocks with screw connection. They are developed for industrial low-voltage power distribution and control circuit connection, adopting qualified insulating materials and conductive parts, to meet basic wiring demands and ensure stable and safe operation in conventional industrial scenarios. Key Features & Advantages Standard screw clamping structure for reliable wire connection Flame retardant insulating shell for daily electrical safety Compatible with standard DIN rail for quick installation Compact modular design for orderly cabinet wiring Stable conductive performance for long-term continuous use Typical ….

Key data: certification CE, CQC; zack strip ZB5; size T5.2×H32×W28; rated current/rated voltage 24A/500V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB5

SizeT5.2×H32×W28

Rated Current/Rated Voltage24A/500V

Cross Section0.2~4mm²

ModelJMBK 3/E-Z / JMBK 3/E-Z-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JMBK 3/E-Z / JMBK 3/E-Z-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB5
Order Number
1010.069/1010.144
Size
T5.2×H32×W28
Rated Current/Rated Voltage
24A/500V
Cross Section
0.2~4mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JMBK-3/E-Z-/-JMBK-3/E-Z-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
