LEIPOLELEIPOLE JDIKD 1.5 / JDIKD 1.5-BU Double Deck Terminal Block LP-JDIKD-1.5/JDIKD-1.5-BU
Terminal blocksHover to zoom

LEIPOLE · Terminal blocks

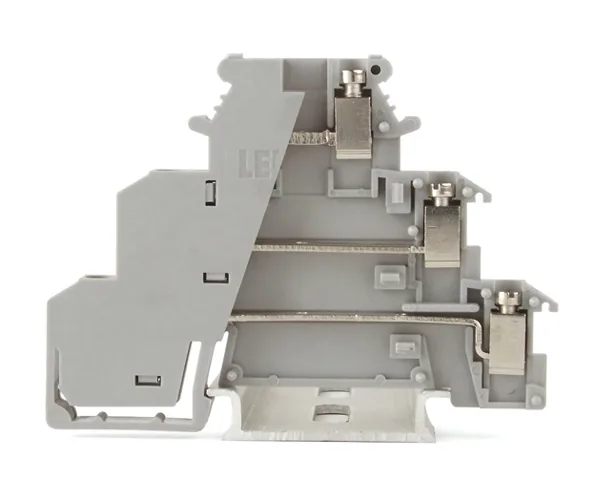

LEIPOLE JDIKD 1.5 / JDIKD 1.5-BU Double Deck Terminal Block

SKULP-JDIKD-1.5/JDIKD-1.5-BU

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC
Zack StripZB6
SizeT6.2×H56×W73
Rated Current/Rated Voltage26A/250V
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JDIKD 1.5 and JDIKD 1.5-BU are double deck screw connection terminal blocks for standard DIN rail mounting. They are used for industrial low-voltage control and power distribution circuits, with qualified insulation and conductive components to realize safe and layered wiring in electrical cabinets. Key Features & Advantages Double deck layered structure to save installation space Sturdy screw clamping connection for firm wire fixation Flame retardant insulated housing for basic electrical protection Standard DIN rail mounting for easy installation and combination Neat layered wiring to optimize cabinet circuit layout Typical Applications Layered wiring inside industrial control ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H56×W73; rated current/rated voltage 26A/250V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H56×W73

Rated Current/Rated Voltage26A/250V

Cross Section0.2~4mm²

ModelJDIKD 1.5/JDIKD 1.5-BU

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1

Specifications

The technical details.

Download specification sheet
Category
Terminal block
Model
JDIKD 1.5/JDIKD 1.5-BU
Certification
CE, CQC
Flammability Class
UL 94 V0
Connection Standard
IEC 60947-7-1
Zack Strip
ZB6
Order Number
1010.054/1010.055
Size
T6.2×H56×W73
Rated Current/Rated Voltage
26A/250V
Cross Section
0.2~4mm²
Connection Type
screw connection

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-JDIKD-1.5/JDIKD-1.5-BU

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
