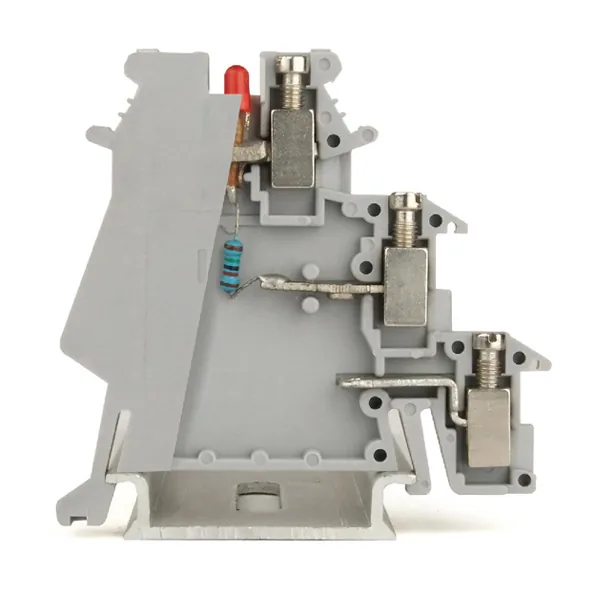

LEIPOLE JDIK 1.5-LA Feed-through Terminal Block

Name: LEIPOLE JDIK 1.5-LA Feed-through Terminal Block
Brand: LEIPOLE
SKU: LP-JDIK-1.5-LA

SKULP-JDIK-1.5-LA

LEIPOLE Terminal blocks · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H55.5×W56

Rated Current/Rated Voltage26A/250V

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Terminal blocks

LEIPOLE JDIK 1.5-LA is a standard DIN rail mounting feed-through terminal block with screw connection. It is professionally applied to industrial low-voltage distribution and control circuits, adopting standard insulating and conductive materials to ensure stable and safe circuit connection in conventional industrial working conditions. Key Features & Advantages Standard screw clamping structure for firm wire connection Flame retardant insulating housing for enhanced electrical safety Modular DIN rail design for quick installation and combination Compact size, suitable for intensive cabinet wiring Steady conductive performance for long-term working Typical Applications Internal wiring and ….

Key data: certification CE, CQC; zack strip ZB6; size T6.2×H55.5×W56; rated current/rated voltage 26A/250V.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

CertificationCE, CQC

Zack StripZB6

SizeT6.2×H55.5×W56

Rated Current/Rated Voltage26A/250V

Cross Section0.2~4mm²

ModelJDIK 1.5-LA

Flammability ClassUL 94 V0

Connection StandardIEC 60947-7-1
