Heating thermostat

Name: Heating thermostat
Brand: LEIPOLE
SKU: LP-JSK0011R-2204

SKULP-JSK0011R-2204

LEIPOLE Thermostats & hygrostats · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

Dimension60×33×43mm

ModelJSK0011R

Order number2021.009

Temperature Range0–60°C

Price on requestQuoted for your configuration and quantity.

Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.

Quantity (units)

Your configuration (optional)

Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Thermostats & hygrostats

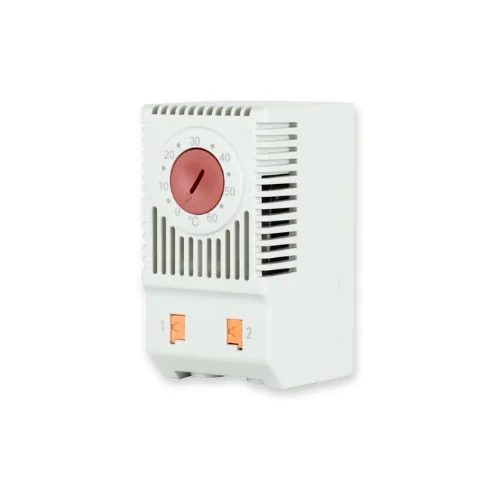

LEIPOLE Heating Thermostat with constant temperature control and bimetallic sensing technology, equipped with anti-freeze protection Constant temperature control function to prevent temperature fluctuations from affecting performance. Bimetallic sensing technology, responsive and durable, ensures accurate and reliable temperature control. Temperature adjustment knob, users can easily adjust the temperature control range. Anti-freeze protection function, automatically activates heating in extremely cold environments to prevent the device from freezing and being damaged by low temperatures. Mechanical structure design, no additional power support required, suitable for harsh environments.

Key data: dimension 60×33×43mm; model JSK0011R; order number 2021.009; temperature range 0–60°C.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

Dimension60×33×43mm

ModelJSK0011R

Order number2021.009

Temperature Range0–60°C

Statusnormally closed (red)

Switching Temperature Tolerance7K (± 4K)

Sensing ElementBimetallic

Maximum Switching Capacity10A / AC 230V
