LEIPOLELEIPOLE FKL9923-162.024 Fan Filter for Industrial Enclosure, 24V DC, IP55 LP-FKL9923-162.024
Enclosure coolingHover to zoom

LEIPOLE · Enclosure cooling

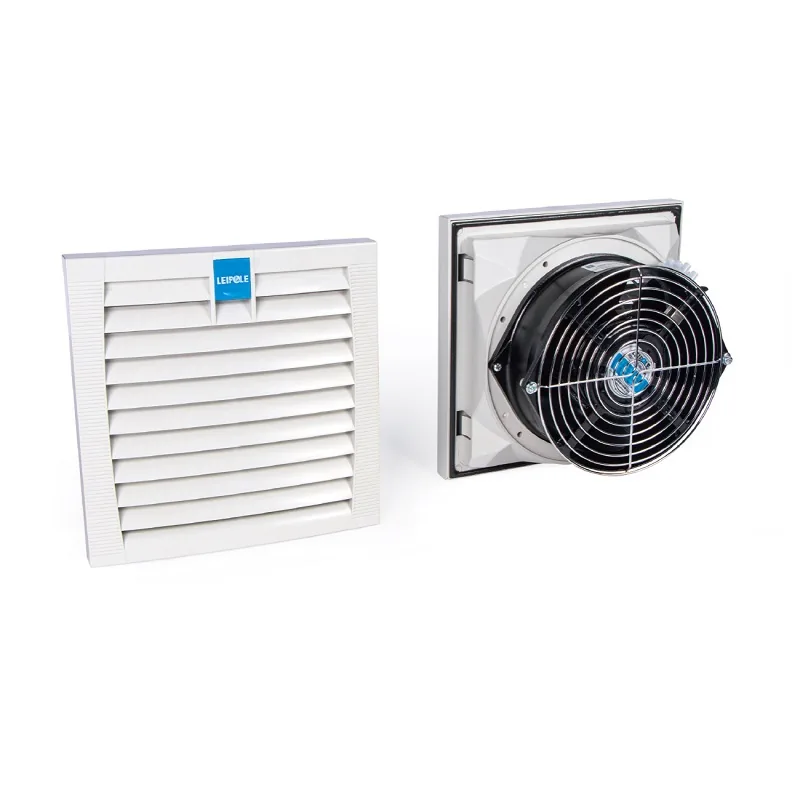

LEIPOLE FKL9923-162.024 Fan Filter for Industrial Enclosure, 24V DC, IP55

SKULP-FKL9923-162.024

LEIPOLE Enclosure cooling · Control panel components. Specified, quoted and supplied by Project Supplies for commercial projects.

ColorRAL7035
Max Air Flow370m³/h
Dimensions(W×H)204×204mm
Cutout Size185×177mm, Mounting Hole Ø4.5mm
Price on requestQuoted for your configuration and quantity.
Technical clarificationSpecifications and certification marks are as published by LEIPOLE Singapore and are not independently verified. Confirm the exact model, ratings and approvals for your switchboard or enclosure before ordering.
Project Supplies specification sheet

Confirm the specification and quotation before ordering.

Product introduction

Enclosure cooling

LEIPOLE FKL9923-162.024 belongs to the FKL99 series fan filter, designed for enclosure thermal management with optimized airflow and low resistance performance. Components Filter media: G4 High-efficiency filtration media, MATL9923(8011.255) Exit filter: FKL9923.300 (2023.009) Features Uses pleated filter mat to minimize airflow resistance Fits standard industrial enclosure thermal management setups Delivers consistent cooling performance within stated temperature range LEIPOLE FKL9923-162.024 belongs to the FKL99 series fan filter, designed for enclosure thermal management with optimized airflow and low resistance performance.

Key data: color RAL7035; max air flow 370m³/h; dimensions 204×204mm; cutout size 185×177mm, Mounting Hole Ø4.5mm.

Every order starts with an RFQ: we confirm the exact variant, options, lead time and commercial terms in an itemised quotation before anything is ordered.

ColorRAL7035

Max Air Flow370m³/h

Dimensions(W×H)204×204mm

Cutout Size185×177mm, Mounting Hole Ø4.5mm

Rated Voltage(V/Hz)24(DC)

Air Flow(IP20)290m³/h

Air Flow(IP55)110m³/h

Rated Current(A)0.30

Specifications

The technical details.

Download specification sheet
Category
Enclosure cooling
Model
FKL9923-162.024
Color
RAL7035
Protection Class
IP55
Max Air Flow
370m³/h
Dimensions(W×H)
204×204mm
Cutout Size
185×177mm, Mounting Hole Ø4.5mm
Type
FKL9923-162.024
Fan Model
F2E-162B-024
Rated Voltage(V/Hz)
24(DC)
Air Flow(IP20)
290m³/h
Air Flow(IP55)
110m³/h
Motor Type
DC Motor
Rated Current(A)
0.30
Power(W)
6.72
Noise Level(dB)
48/53
Operating Temp Range
-10℃ ~ +55℃
Outlet Filter
FKL9923.300
Filter Material
161×166×14mm, G4, V2, MATL9923(8011.255)

Documents

Specification sheet & source.

Project Supplies specification sheet

LP-FKL9923-162.024

Product image, key data, the full specification and document control — laid out for project submittals.

PDF · A4Reviewed 2026-10-06LEIPOLE
Open specification sheet

Technical source

LEIPOLE

Checked 2026-10-06. Manufacturer values are reference specifications; confirm the exact variant and installation requirements before approval.
